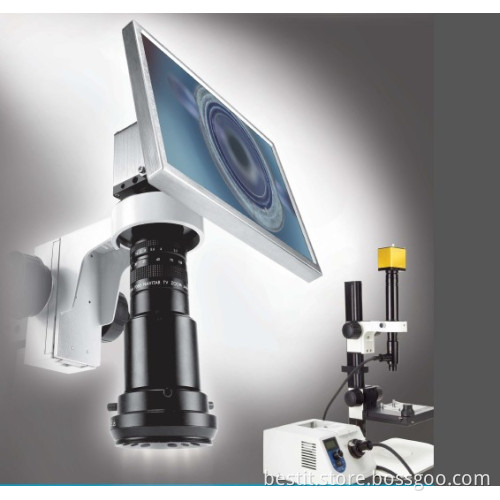

SS9015 HD industrial camera with displayer

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Features:
The output pixel of the camera is corresponding to the
screen design, the image is very delicate and bright;
All digital output display, make the image real and fine;
With strong light inhibition function, comfortable observation;
With edge enhancement function

	Item	SS-9015
	Optical size	1/3 inches
	Pixel size	3.75um*3.75um
	Max. Resolution	1280*800
	Frame rate	60fps
	WB	Auto
	strong Light inhibited selection	3 levels
	Image level mode	3 levels
	Color mode	RGB individual adjustment
	crossline inside	central crossline and 8 shifted lines
	Line width	1 pixel
	ON/OFF	White/Black
	Output	LVDS digital output
	Lens Mount	C-mount
	Displayer size	10.1'WXGA16:10COLOR TFT-LCD
	Displayer resolution	1280*800
	Displayer pixel size	0.1695*0.1695
	Lens Mount	C-mount connector
	Displayer size	230mm153mm14mm
	Input voltage	DC-12V
	Shell size	61mm61mm72mm
	Work temperature	0-80℃
