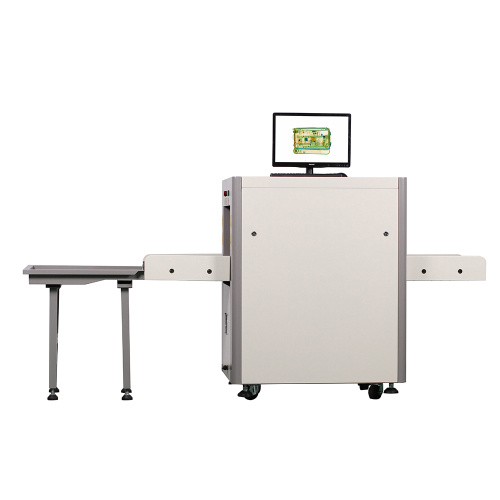

X-Ray parcel scanner (MS-5030C)

X-Ray baggage scanner

(Model#MS-5030C)

MS-5030C X-ray safety inspection equipment is a single-level X-ray security inspection product independently developed by our company. It is suitable for the safety inspection of briefcases handbags, postal parcels and small and medium-sized parcels. It is widely used in courts, procuratorates, prisons, Hotels, museums, stadiums and other places. Airport Security Scanner, X-Ray airport security scanner & Airport security scanner big size.

Part I.  Product Feature

· Modularization: The internal circuit structure of the device adopts the modular design idea. Through reasonable layout design, the anti-interference ability of the equipment is improved to ensure stable operation and convenient maintenance.

· Digitization: The hardware system adopts the latest ASIC full digital design, and the analog acquisition scheme optimizes the circuit design. It has the characteristics of high integration, strong anti-interference ability and clear imaging effect.

· Intelligent: The software system integrates RTOS real-time image processing system, TIP dangerous goods insertion, dangerous goods auxiliary alarm, remote control management, image fast backup and other practical functions; X-Ray parcel scanner for factories.

· Automation: system integration one-button switch machine, infrared energy-saving induction, emergency alarm prompt, fault self-test and other functions; X-Ray Parcel Scanner.

· Specialization: User-friendly system operation interface, convenient and practical image processing function and customized special security keyboard to create a professional user platform.

Part II.  Basic parameters

Channel size: 505 * 305mm (width * height)

Conveyor speed: 0.22 m/s

Conveyor load: 120 Kg (even load)

Wear: > 38 mm steel

Line resolution: > 38 AWG

Spatial resolution: horizontal / vertical Φ 1.0mm

Part III.  X-ray source

Control interface: analog interface

Tube voltage: 140 ~ 160 KV (adjustable)

Tube current: 0.6 ~ 1.2 mA (adjustable)

Cooling method: sealed oil cooling, industrial fan cooling

Work cycle: 100%, no need to warm up

Protection function: over voltage, over current, over temperature protection

Part IV.   Radiation safety indicator

Leakage rate: < 0.5μGy / h (5cm from the outer shell)

Single dose: < 5.0μGy

Safety: Safety for film, chip, and electronics

Radiation protection: The channel inlet and outlet adopts 0.5mmPb double-layer environmental protection lead curtain protection, and the main body adopts 2 ~ 6mm lead plate protection to ensure that the peripheral radiation of the equipment meets national safety standards.

Part V.  Installation data

Noise level: < 58 dB(A)

Weight: 500 Kg

Power consumption: 0.5 KW (MAX)

Power source: AC220V±10%, 60Hz±5Hz

Channel height: 750 mm

Dimensions: 1600 mm (L) * 800 mm (W) * 1200 mm (H)

Optional function module -- Multi-view monitoring system / Remote operation management system / Dedicated security keyboard / Energy-saving induction device / Adjustable speed conveyor belt / Import and export extension rack / Network communication / Face recognition...X-Ray parcel scanners.
