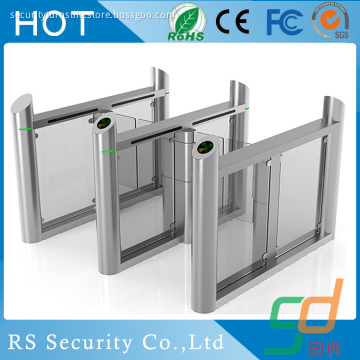

Bidirectional Automatic Swing Door Security Turnstile Gate
The flap barrier speed gate are designed to control pedestrian entering and exiting, adopts stainless steel #304, double brushed surface treatment, dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use, easy to integrate with other read/write devices, and widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.
Function and Feature
(1) Directional VFD Optical Signals----Green Arrow or Red Cross signage
(2) Only one person can pass with one card
(3) Collect the break-in information
(4) Installed in indoor or outdoor
(5) Well lightning and grounding
(6) Multi-working mode----Forbidden, Controlled or Free Passing optional
(7) Easily integrated with any type of readers---such as Magnetic card, Barcode card, RFID Card and so on
(8) Card-swiping memory function
(9) Statistics collection automatically
(10) Manual release when meet the outside push
(11) NO/NC mode. In an emergency, the passage will be freely pass automatically
(12) Bi-directional passing or single way passing
(13) Self-inspection and alarm
(14) Can program the running status online by setting the built-in keys
(15) LED Counter, Direction indicator
(16) Infrared detector to sense the passing status.
Technical specification
|
Material |
304 stainless steel |
Input voltage |
110V/220V ±10%,50/60Hz |
|
Size |
1400* 130 * 990 mm |
Arm width |
265m |
|
Net weight |
About 70kg/unit |
Arm material |
Acrylic or soft arm |
|
Motor |
24V DC brush |
Top Cover |
Acrylic or stainless steel |
|
Communication interface |
RS485 |
Sensor beams |
5 pairs for 1 complete lane |
|
Transit speed |
30-40 people/minute |
MTBF |
5000,000 times |
|
Close and open time |
0.6S |
Input interface |
Relay signal, 12V level signal, |
|
Clear passage width |
600mm ( standard) , 900mm (optional) |
Work environment |
Indoor and outdoor (shelter) |
|
Number of led lamp |
5 pcs |
Model |
RS 716-2 |
