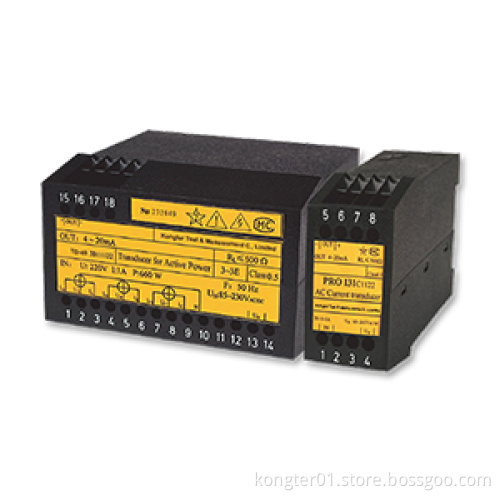

TD-40 Transducer for Electrical Quantities

Product Description

TD-40 Series Transducers for Electrical Quantities, fundamental devices for process automation. All our instruments fulfill all important requirements and regulations concerning electromagnetic compatibility and safe isolation (IEC688-1992 standard and GB/T 13850-1998 standard). The devices have been developed, manufactured and tested in accordance with Quality Assurance System ISO 9001.

Main Feature

s   Designed and tested to meet requirements of IEC 668

s   High load capacity

s   High reliability

s   DIN rail mounting

Technical Specification

Accuracy: Class0.2,0.5

Auxiliary Power Supply: 85V~265VDC/AC 24V~80VDC/AC

Stability: Annual Change Rate ≤±0.2%

Input Overload Capacity:

Continuous Overload Capacity ≤1.5X

Transient Overload Capacity  Voltage Limit≤3X  Current Limit≤30X

Output:

Constant Voltage Output, Load Resistor    Rext≥250Ω

Constant Current Output, Load Resistor    Rext≤500Ω

Alternating Wave: ≤18mV(Peak-Peak)

Response Time: ≤300ms

Striking Voltage: ≤2.5kV

Operating Temperature: -10℃~+55℃

Storage Temperature: -40℃~+85℃

Relative Humidity of Annual Mean: ≤90%RH

Installation: DIN 35mm Rail

Size:35mm×69mm×110mm

Guaranty Period: 2 years
