HDMI Splitter V1.4 4K@30Hz
- Payment Type:
- L/C, T/T, Paypal
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 100 Set/Sets
- Min. Order:
- 100 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen Chiwan, Shenzhen Yantian, Shenzhen Yunzuo
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 10000 |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | CE FCC RoHS |
| HS Code: | 8543709990 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen Chiwan,Shenzhen Yantian,Shenzhen Yunzuo |

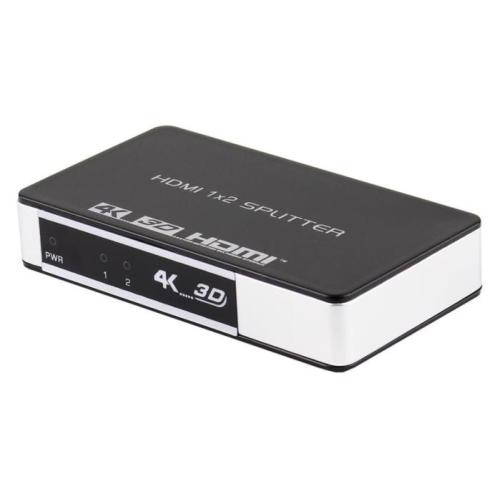

HDMI Splitter V1.4 4K@30Hz
HDMI Splitter V1.4 4K@30Hz Introduction
HDMI Splitter V1.4 4K@30Hz 1 x 2 is a product can distribute 1 way HDMI signal to 2 display terminal devices without any quality loss. It supports most of the home theater such as HDTV, blu-ray DVD, Xbox, PS3, PS4, Fire TV stick, Fire TV, ROKU, Apple TV and more other devices. It can optimize your home theater system to the best effect.
HDMI Splitter V1.4 4K@30Hz 1x2 Features
Support Fully HDMI v1.4, Compliant with HDCP 1.4 protocol.
Extends the transmission distance and improve transmission signalSupports up to 4K x 2K for HDMI input and output, HD resolutions up to 4Kx2K, including 480i/p, 576i/p, 720i/p, 1080i, 1080p, Supports 12-bit Deep Full HD, Full 3D (To get 3D, all units connected to the splitter outputs must support 3D)
Compatible with DVI through a HDMI to DVI adapter
Supports hot plug-and-play
LED indicates signal and power mode port 3D
Support audio format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
Support AWG26 HDMI cable length up to 66ft
Support hot plug-and-play
Uses 5V power supply
Size (L x W x H): 110 x 62 x 22mm
HDMI Splitter V1.4 4K@30Hz 1 x 2 Specifications
HDMI version........................................................ ..HDMI 1.4, HDCP 1.3
HDMI resolution .....................................................24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
Support video color format .....................................24bit/deep color 30bit, 36bit, 48bit
VerticalFrequencyRange........................................1080p@60Hz; 4K x 2K@30Hz
Support audio format..............................................DTS-HD/Dolby-trueHD/LPCM7.1 /DTS/Dolby-AC3/DSD
Max band width..................................................................297MHz
Max band rate..........................................................................8.91Gbps
Input/Output TMDS signal .......................................................0.5~1.5Volts p-p(TTL)
Input/Output DDC signal...........................................................5Volts p-p (TTL)
1080P Input cable distance.......................................................≤15mAWG26 HDMI standard cable
1080P Output cable distance....................................................≤20mAWG26 HDMI standard cable
4KX2K Input cable distance......................................................≤5mAWG24 HDMI standard cable
4KX2K Output cable distance....................................................≤10mAWG24 HDMI standard cable
Max working current....................................................................500mA
Power adapter format Input:.................................................AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range...................................................(-15 to +55℃)
Operating Humidity range ........................................................5 to 90%RH (No Condensation)
Dimension (L x W x H) ...........................................................110x60x20mm
Weight...........................................................................................100g
Certificates: CE FCC RoHS
HDMI Splitter V1.4 4K@30Hz 1 x 2 package content:
HDMI Splitter V1.4 4K@30Hz x1
Power Adapter x1
User Manual x1
