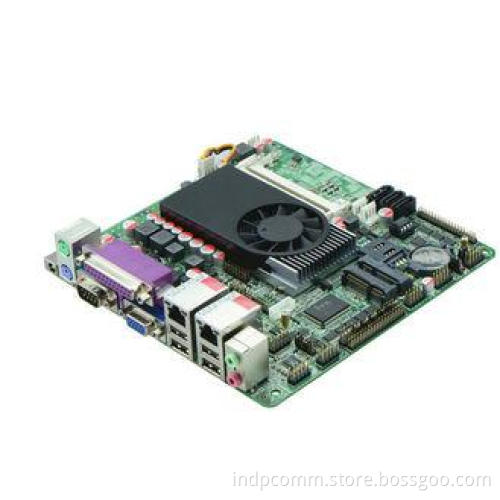

Intel 847U Dual core processor MINI ITX Industrial Motherb

CPU

Intel® 847U Dual core 22nm Processor (1.10GHZ) TDP 17W

Chipset

Intel® NM70 Chipset

Memory

2*204pin Dual Channel SO-DIMM DDR3 1333MHz, Max. up to 16GB

Graphics

Intel® HD Graphics

Offers 1*VGA,1*HDMI,1*LVDS(support Dual 24bit)

support HDMI/VGA synchronous/asynchronous display

support LVDS/VGA synchronous/asynchronous display

support LVDS/HDMI synchronous/asynchronous display

Expansion Slots

1* Mini-PCIE (support WIFI/3G)

1* MSATA (support SSD 6Gbps/WIFI)

LAN

2*RTL8111E 10/100/1000Mbps Ethernet

Support Wake-on-LAN and PXE function

Storage

3* SATAII 3Gbps

Audio

Integrated Realtek HD ALC662 for 6-Channel output

Support MIC/Line-out/Line-in

Rear I/O

1* 12V DC_JACK input

1* PS/2

1* DB9 COM, the 9th pin supports +5V/+12V charged function

1* LPT

1* DB15 VGA

2* RJ-45 LAN

4* USB 2.0

1* AUDIO I/O (MIC and Line-out)

Internal I/O

9* RS232, COM2 and COM3 also support RS485/422 and 9PIN charged function.

1* LVDS(2*15pin),support dual channel 24bit LCD

1* HDMI 2*8Pin

1* VGA1 2*5pin

4* USB 2.0

1* AUDIO

1* FP1 (2*5pin Front panel buttons and LED connected)

1* TX-RXCOM 2*4Pin

1* PS/2 1*6Pin

1* SIM

1* ATX_12V (Can be used as input and output 12V power connector)

2* PWROUT (Hard drive power connector)

Fun interface

1* CPUFAN and SYSFAN 4pin

GPIO

1* GPIO (Support 4-way GPIO function)

BIOS

AMI 32MB Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC_12V Single power supply

Operating Temp.

-10°C~60°C

Storage Temp.

-20°C~70°C

Humidity

0%-95%(relative humidity; non-condensing)

Dimension

170mm x 170mm
