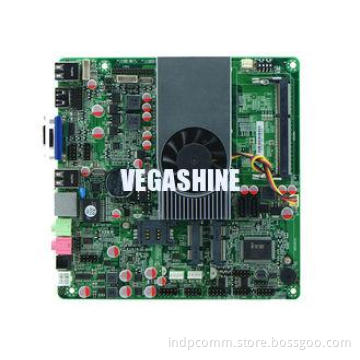

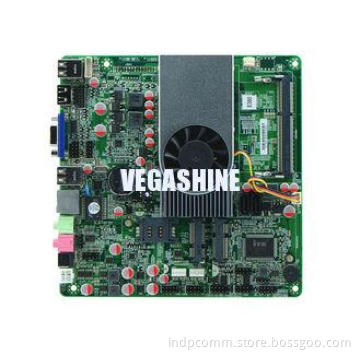

AMD N330 Processor All In One Pc motherboard Integrated ATI

CPU

AMD N330 2.3GHz dual core Processor

Chipset

RS880M+SB820M Chipset

Memory

1* SO DDRIII 1333/1066MHz, Max. Up to 4GB

Graphics

ATI HD4200 Graphics, support 1080P HD

Support VGA/HDMI/LVDS display output

LVDS supports dual 24BIT

ExpansionSlots

1* Mini-PCIE, support WIFI

LAN

1* RTL8111E 10/100/1000Mbps Ethernet,Support Wake-on-LAN and PXE function

Storage

2* SATAII

1* MSATA, support SSD

Audio

Integrated Realtek HD ALC662 for 6-Channel output

Support MIC/Line-out/Line-in

Rear I/O

4* USB 2.0

1* HDMI

1* VGA

1* RJ-45 LAN

1* Line out(green)

1* Mic(red)

1* 12V DC_JACK input

Internal I/O

1* LVDS 2*15pin

1* JHDMI

1* JVGA

2* COM

4* USB 2.0

1* AUDIO pin (Front Audio interface 2*5pin)

1* CD_IN pin Amplifier interface

1* FP1 (2*5pin Front panel buttons and LED connected)

1* ATX_12V (Can be used as input and output 12V power connector)

2* PWROUT (Hard drive power connector)

1* LVDS INVERTER

Fun interface

1* CPUFAN and SYSFAN 3pin

GPIO

1* GPIO (Support 4-way GPIO function)

BIOS

AMI 8MB DPI Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC_12VSingle power supply

OperatingTemp.

-10°C~60°C

Storage Temp.

-20°C~70°C

Humidity

0%-95%(relative humidity; non-condensing)

Dimension

170mm x 170mm
