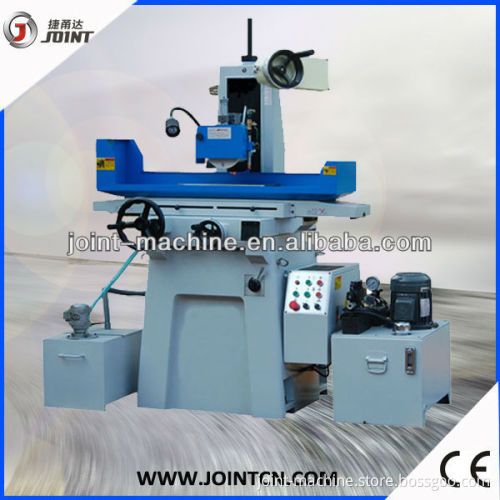

New mini surface grinder machine for sale 200S/H

New mini surface grinder machine for sale 200S/H   Features Twice scraped slide way,which could assure the accuracy of the machine High quality electric components Radius tolerance of spindle<=0.002mm Vertical vertical value of ram slide way <=0.005mm Processing accuracy<=0.005 Long life span, High accuracy   Specification

Model	200S/H
Table size	350*160 mm
Table travel (Longitude)	380 mm
Table travel (Crossward)	200 mm
Table side way	Ball-slide way/Slide way
Max.distance from spindle center to working table	445 mm
Crossward feed of hand wheel (1Rev)	4
Crossward feed of hand wheel (1Div)	0.02
Vertical feed of hand wheel (1Rev)	2
Vertical feed of hand wheel (1Div)	0.01
Rotation speed	2850 rpm
Grinding wheel size	φ200*(6-20)*φ31.75
Spindle motor	1.5*2
Hydraulic motor	-/1*4
Coolant pump motor	0.12*2
Dust-clean motor	0.5*2
Dimension (L*W*H)	1610*1120*1645 mm
Net weight	780 kg

    Standard accessories:  Coolant system or dust clean Working light Tool and toolbox Operation manual   Optional accessories: DRO Magnet chuck Balancing stand/bracket   After-sales Service:      Warranty is a year. Parts are free of charge to be offered during this period. Oversea service need to charged extra in and out of warranty.
