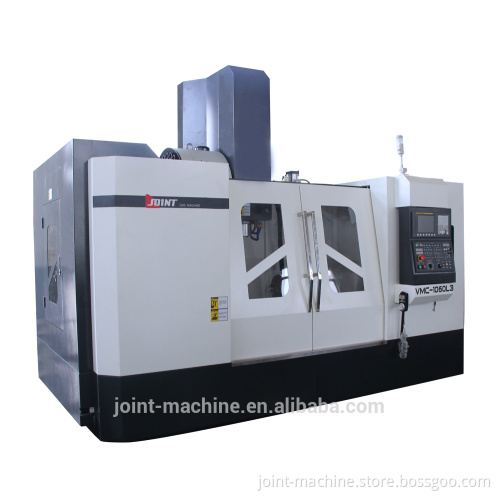

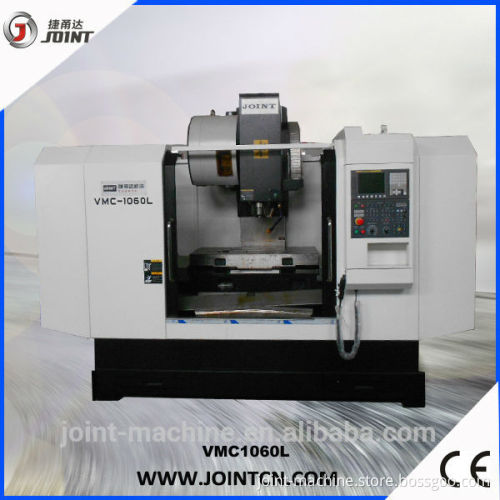

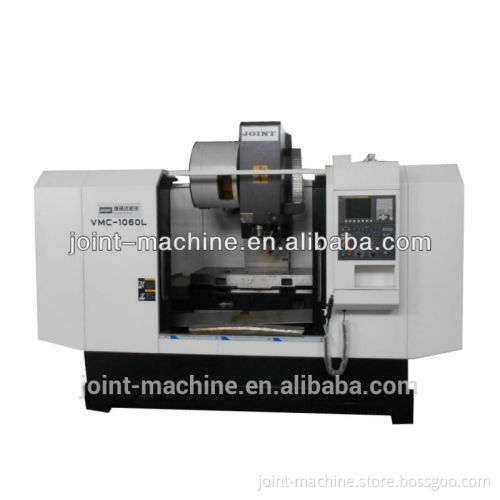

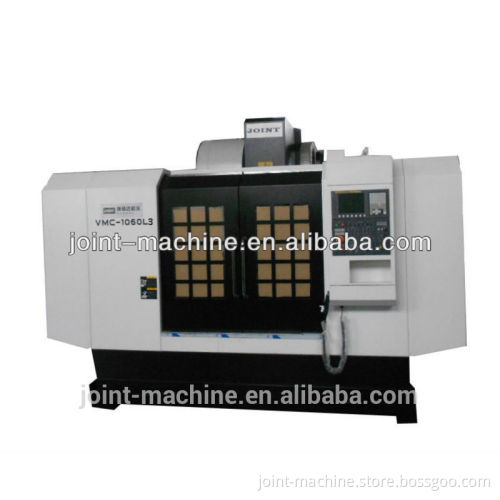

Three axis linear way CNC machine center VMC-1060L3

Three  axis linear way CNC machine center VMC-1060L3 Specifications   Hardway with small friction embodies quick response
Machine parts are world famous brand
High quality and rigidity

  Detailed Product Description 1.Table travel 1000*600*600mm
2.Rapid feed 24(max30)*24(max30)*24(max30)m/min
3.Max.loaded of table 800kgs
4.OEM manufacturer
5.CE certificate   Features: 1. Mehanite casting,computer analysis facilities are used in its manufacturing,    wide distance slide way makes outstanding rigidity. 2.Pre-pressed and pre-tense double screw assures feeding high accuracy.    Special design of slide way and auto lubrication system ensures the accuracy    long-time of the machine. 3.Precisely scrapped and Turcite B coated slide way makes machines run smoothly. 4.X,Y axis are assembled with linear way, Linear device is closely fixed on the cast   Who has the features of small touch area,small friction;hence each machine embodies   Quickly response,good dynamic performance,fast feed rate,and high positioning accuracy.   Specification:Vertical machine center VMC-1060L3

Model	VMC-1060L3
Table size	1300*600mm
Table travel	1000*600*600mm
Distance between spindle and table	70*670mm
Distance between spindle and column	660mm
Spindle rotation speed	8000/10000/12000/15000rpm
Spindle taper	BT40
Spindle motor	7.5kw
Rapid feed	24(max30)*24(max30)*24(max30)m/min
Cutting feed	8m/min
Positioning accuracy	0.008mm/m
Min Enactment move unit	0.001mm
Dimension(L*W*H)	3300*2400*2950mm
Net weight	7500kgs
Max.Loaded of table	800kgs

  Accessories: 1.Standard accessoires: Control system Electronic hand wheel Cover Auto lubrication of slide way Coolant system Operation manual of machine Operation manual of control system Cutting fluid and filter system Stainless steel covers of slide way Alarming light Hammer balance Tool and toolbox    2.Optional accessories: Milling chuck and tool unlock Arm type or umbrella type tool magazine Auto chip conveyor Oil coolant The fourth axis NC dividing head or rotary table Heat exchanger
