GPS tracking system for vehicles
- Delivery Time:
- 3 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Specifications Truck Tracking
Assets Tracking
Vehicle Tracking

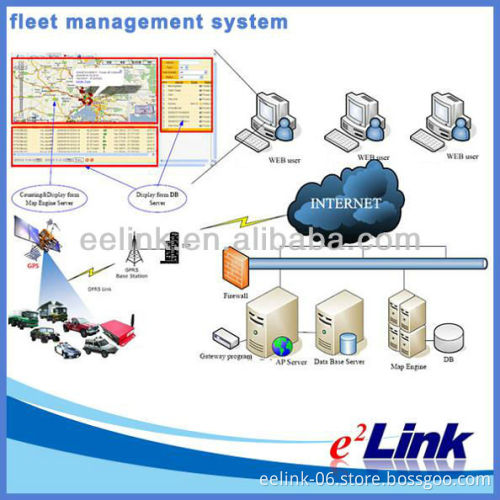

Fleet Management
Shenzhen Eelink is a manufacturer and exporter of GPS Trackers, Vehicle Tracking Devices. We also offer mature GPS Tracking Solutions including vehicle tracking, personal security, and fleet management APPLICATIONS Truck Tracking
Assets Tracking
Vehicle Tracking
Fleet Management Environment for use 1,Limited working temperature:-20°C~80°C
2,Storage temperature:-45°C~90°C
3,Humidity:<95%
4,Atmospheric pressure:86kPa~106kPa
5,Make sure the terminal is installed in rainproof
and snow-proof places. 6.200MAh battery Basic Specifications:
Voltage 12VDC/24VDC
Standby Current <3mA
Work current <30mA
GPS positioning
accuracy 15m
GSM positioning
accuracy 100m
GPS Frequency 1575MHz
GSM Frequency 850/900/1800/1900MHz
Hot/warm/cold start time <3s,<15s,<60s
Dimensions (mm) L*W*H :
79.5X38.5X10.5
Weight 45 g Product Features
1.Supports quad bands, i.e.
850/900/1800/1900MHz, universal in
the world.
2.Wide Input Voltage:6-36V DC.
3.Supports single positioning and feedbacks
position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Supports ACC status checking and vehicle status
notifying.
6.Use relay to remote control the vehicle..
7.Use SOS button for SOS call.
8.Use external MIC to monitor remotely Main function
GPS Vehicle Tracking Solutions
Detail picture
GPS TRACKING SYSTEM
PACKAGE
ACCESSORIES
Assets Tracking
Vehicle Tracking
Fleet Management
Shenzhen Eelink is a manufacturer and exporter of GPS Trackers, Vehicle Tracking Devices. We also offer mature GPS Tracking Solutions including vehicle tracking, personal security, and fleet management APPLICATIONS Truck Tracking
Assets Tracking
Vehicle Tracking
Fleet Management Environment for use 1,Limited working temperature:-20°C~80°C
2,Storage temperature:-45°C~90°C
3,Humidity:<95%
4,Atmospheric pressure:86kPa~106kPa
5,Make sure the terminal is installed in rainproof
and snow-proof places. 6.200MAh battery Basic Specifications:
Voltage 12VDC/24VDC
Standby Current <3mA
Work current <30mA
GPS positioning
accuracy 15m
GSM positioning
accuracy 100m
GPS Frequency 1575MHz
GSM Frequency 850/900/1800/1900MHz
Hot/warm/cold start time <3s,<15s,<60s
Dimensions (mm) L*W*H :
79.5X38.5X10.5
Weight 45 g Product Features
1.Supports quad bands, i.e.
850/900/1800/1900MHz, universal in
the world.
2.Wide Input Voltage:6-36V DC.
3.Supports single positioning and feedbacks
position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Supports ACC status checking and vehicle status
notifying.
6.Use relay to remote control the vehicle..
7.Use SOS button for SOS call.
8.Use external MIC to monitor remotely Main function
| Brand | Eelink |
| Model | TK116 |
| Quantity | 1 piece(s) |
| Color | Black |
| Material | ABS |
| Network | GSM |
| Band | 85000000 MHz |
| SIM Card Qty. | one SIM |
| Emergency Phone Number Qty. | 3 |
| Tracking Information Method | Monitoring and controlling platform |
| Power Supply | DC 6~36V |
| GPS Chip | SIRF |
| GPS Sensitivity | -163 dB |
| GPS Channel | 20 |
| Position Accuracy | 10 m |
| Altitude Limit | 18000 m |
| Hot Start | 3 seconds |
| Warm Start | 15 seconds |
| Cold Start | 60 seconds |
| SOS | Yes |
| Geo-fence | Yes |
| Vibrating Alerts | Yes |
| Remote Monitoring | Yes |
| Engine Cut Off | Yes |
| Realtime Monitoring | Yes |
| Track Playback | Yes |
| ACC Anti-Theft | Yes |
| Overspeed Alerts | Yes |
| Low Battery Alerts | Yes |
| GPS Blind Area Alarm | Yes |
| Voice Call | No |
| Waterproof Function | Yes |
| Waterproof Rate | Daily user water resistant |
| Working Temperature | -35~75'C |
| Working Humidity | 5%~95% |
| Manufacturer's Warranty | 12 Months excluding physical damages (see specifications for terms and details) |
| Certification | CE |
| Packing List | 1 x GPS (5cm) |
| 1 x Power cable (100cm) | |
| 1 x Microphone (150cm) | |
| 1 x SOS button | |
| 1 x English user manual | |
| 1 x Chinese / English instruction manual |
Detail picture GPS TRACKING SYSTEM PACKAGE | Packing List | 1 x GPS (5cm) |
| 1 x Power cable (100cm) | |
| 1 x Microphone (150cm) | |
| 1 x SOS button | |
| 1 x English user manual | |
| 1 x Chinese / English instruction manual |
ACCESSORIES
