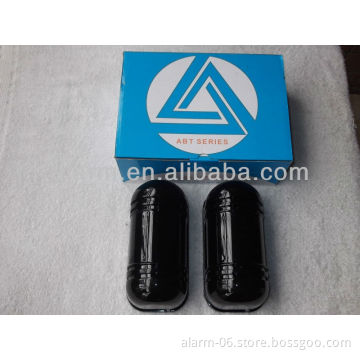

2 beam yard anti-intrusion sensor outdoor active infrared beam detector/sensor for security alarm system

Product name

2 beams infrared beam detector

Model No

ABT

Features

1,Anti-glare up   to 50,000 LUX, built-in automatic adjustment strong light filtering system, avoid bright   light or car lights

2, Fully sealed ,anti rain (fog), dust (worms)   weather ,integrated structure design to   enable them to work properly in   harsh environments

3,When you encounter fog or   bad weather detectors will automatically enhanced   sensitivity (AGC circuit)

4,Upper and down optical lenses adjust the mechanical design   at the same time, making adjustments faster, more convenient and more accurate

5, The modular design to   facilitate the addition of   the detector and   stacked detector

6,Horizontal   / vertical optical angle easy to adjust, easy calibration

7, Built-in optical sight, easy to debug

8, Precise optical focusing mirrortechnology as well as Bus control technology

9, With a high level of resistance   to RFI / EMI capacity

10,Unique digitalfilter circuitdesign

11,The photosensitivemargin99%

12,Anti-lightning circuit design

13,With rain cover design

14,C relay output

15,Adjustable   beam interdiction cycle, to make it more flexible, adaptable

16,Professional anti-jammingopticalcover

17,High-power infrared receiver   on the tube, low-power   digital conversion processing technology

Technical parameters

Model No

ABT-20

ABT-30

ABT-40

ABT-60

ABT-80

ABT-100

Infrared distance (outdoor )

20m

30m

40m

60m

80m

100

Infrared distance(Indoor)

60m

90m

120m

180m

240m

300m

Beam numbers

2

Light source

Infrared digitalpulse

Induction speed

50—700ms

Alarm output(Conventional)

(NC&NO)Contact capacity: AV/DC 30V/0.5mA

Working voltage

DC 13.8—24V; AC 11—18V

Working currency
