Huawei ME909s-120 LTE cat4 module with Hi-Silicon chipset
- Delivery Time:
- 2 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description

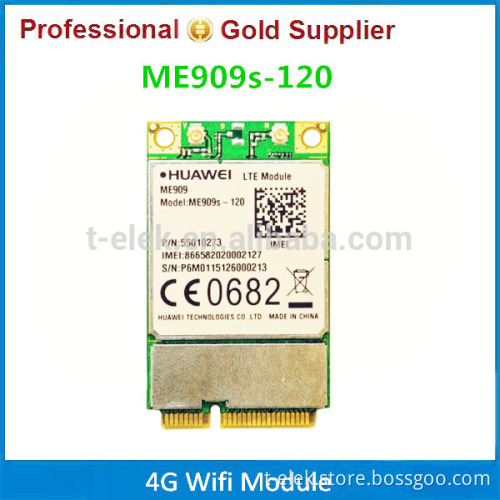

ME909S-120 LTE Module MINI PCIe
Quick review: ME909s-120 is the first LTE cat4 module based on Hi-Silicon chipset. Which is high-quality designed LTE module in small size and Huawei standard LGA form factor, especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs. ME909s-120 supports 150Mbps downlink data rate, including enhanced features like FOTA, USSD and Huawei enhanced AT commands. ME909s-120(B1/B2/B3/B4/B5/B7/B8/B20) supports EMEA region, and has two different form factors: LGA and Mini PCIe form factor. With Huawei pin-to-pin form factor, it is easy to migrate from MU609, MU709 or ME909u family to ME909s-120. Size: H30.4mm*W51mm*D3.52mm
Weight: <12g Form Factor Mini-PCIe
Bands ME909s-120 Mini PCIe:
LTE (FDD): B1,B2,B3,B4,B5,B7,B8,B20
DC-HSPA+/HSPA+/HSPA/UMTS : B1,B2,B5,B8
EDGE/GPRS/GSM: 850/900/1800/1900 MHz
Data Transfer Rate DC-HSPA+ :Downlink:42 Mbps, Uplink: 5.76 Mbps
LTE FDD: Downlink:150 Mbps, Uplink: 50 Mbps @Bandwidth 20M (CAT4)
Interface Mini PCIe interface
Antenna interface
USB 2.0 High speed
PCM Voice
SIM Card
LED
Power supply
Reset
Power Supply 3.2 V to 4.2 V (3.8 V recommended)
Temp Range -40℃ to 85℃
Voice PCM Voice
DTMF
Special Features CDC-ECM
FOTA
Firmware Update via USB
Embedded UDP/TCP/FTP(s)/HTTP(s) stack
High-speed UART
CMUX
Sleep mode
Operating System Linux, Android, WinCE, Windows 8/10
Quick review: ME909s-120 is the first LTE cat4 module based on Hi-Silicon chipset. Which is high-quality designed LTE module in small size and Huawei standard LGA form factor, especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs. ME909s-120 supports 150Mbps downlink data rate, including enhanced features like FOTA, USSD and Huawei enhanced AT commands. ME909s-120(B1/B2/B3/B4/B5/B7/B8/B20) supports EMEA region, and has two different form factors: LGA and Mini PCIe form factor. With Huawei pin-to-pin form factor, it is easy to migrate from MU609, MU709 or ME909u family to ME909s-120. Size: H30.4mm*W51mm*D3.52mm
Weight: <12g Form Factor Mini-PCIe
Bands ME909s-120 Mini PCIe:
LTE (FDD): B1,B2,B3,B4,B5,B7,B8,B20
DC-HSPA+/HSPA+/HSPA/UMTS : B1,B2,B5,B8
EDGE/GPRS/GSM: 850/900/1800/1900 MHz
Data Transfer Rate DC-HSPA+ :Downlink:42 Mbps, Uplink: 5.76 Mbps
LTE FDD: Downlink:150 Mbps, Uplink: 50 Mbps @Bandwidth 20M (CAT4)
Interface Mini PCIe interface
Antenna interface
USB 2.0 High speed
PCM Voice
SIM Card
LED
Power supply
Reset
Power Supply 3.2 V to 4.2 V (3.8 V recommended)
Temp Range -40℃ to 85℃
Voice PCM Voice
DTMF
Special Features CDC-ECM
FOTA
Firmware Update via USB
Embedded UDP/TCP/FTP(s)/HTTP(s) stack
High-speed UART
CMUX
Sleep mode
Operating System Linux, Android, WinCE, Windows 8/10
