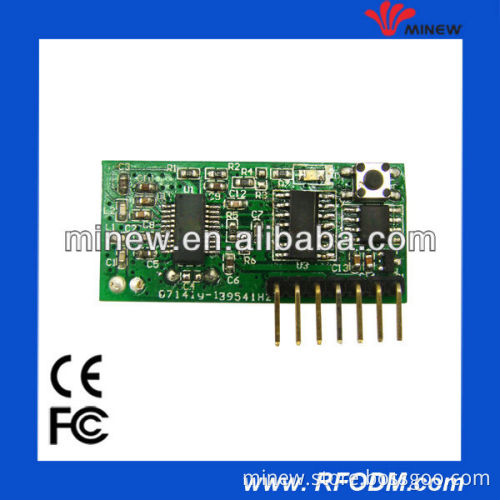

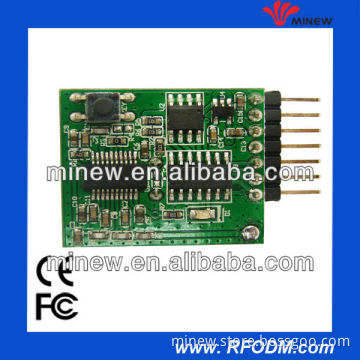

Learning code receiver module 868MHz
- Delivery Time:
- 2 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Specifications 1. Learning code mode
2. 4 channles output
3. 868Mhz working frequency
Minew company is not only a professional RF / Wireless products design-house, but also a verified manufacturer by Alibaba. Due to our outstanding design capabilities and extensive manufacturing experience, we can rapidly develop and produce RF & Wirelss products as global client's requirements. >>>>>>>>>>>>>>>>>> We have been producing wirless remote control, RF transmitter and receiver modules, wireless receiver control switch, wireless detectors(PIR Motion sensor, door soor, gas detector, smoking deteckor, water leaking detector, etc.) and home / business burglar alarm system. Our standard products are exported to Europe, America, Asia , Australia and Africa. Our service: Turnkey product design & One-stop manufacturing We will be pleased to begin working with you!
2. 4 channles output
3. 868Mhz working frequency
Operation voltage | DC 2.4-5.5V |
Standby current | <1uA |
Operation frequency | 868.4MHz (914.8MHz Optional) |
Modulation | Super-Heterodyne (Crystal Oscillator) |
Operation current | 11.0mA (DC 3.0V) |
Data rate | <10Kbps |
Receiving Sensitivity | -108dB (Typ.) |
Encoder | Learning code, 1527, ITC |
Studied Remotes Quanity | 5pcs(Max.) |
Output channel | 4 channels (D0-D3) |
Output Mode | Locked / Memontary (optional) |
Antenna | External |
Package | DIP, 7pin, (D0-D3, Vcc, GND, Key) |
Size | 40mm*18mm*6mm |
Certification | CE(R&TTE), FCC(Part 15.), RoHS |
Minew company is not only a professional RF / Wireless products design-house, but also a verified manufacturer by Alibaba. Due to our outstanding design capabilities and extensive manufacturing experience, we can rapidly develop and produce RF & Wirelss products as global client's requirements. >>>>>>>>>>>>>>>>>> We have been producing wirless remote control, RF transmitter and receiver modules, wireless receiver control switch, wireless detectors(PIR Motion sensor, door soor, gas detector, smoking deteckor, water leaking detector, etc.) and home / business burglar alarm system. Our standard products are exported to Europe, America, Asia , Australia and Africa. Our service: Turnkey product design & One-stop manufacturing We will be pleased to begin working with you!
