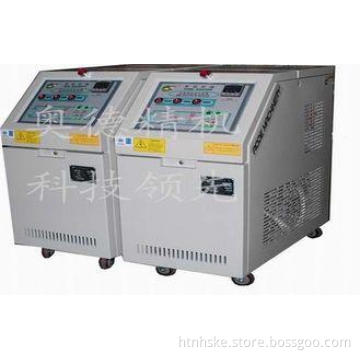

Plastic Injection Mold Hot Oil Temperature Control Unit , PID±1℃ Accuracy
Quick Detail:
1. Explosion-proof equipment(optional)
2. Shutdown immediate cooling function(optional)
3. Certification:CE & ISO
4. Pump power: 1.5KW
5. Inlet water temperature:25℃-300℃
6. Alarm function:pump reversal,Oil shortage, overheating, overload and oil overflow
7. Warranty:1 year
Description:
- Explosion-proof equipment (optional)
- Air blowing and return oil return function(optional)
- Thermometer for return oil
- Automatic air-exhausting function after startup
- Switchover of heating power
- Negative-pressure system(optional)
- RS485 communication function for automated management(optional)
- Shutdown delayed cooling function(optional)
- Isolated electric box for longer services lives of electric appliances
- BY-PASS pressure release loop for hot oil
- Customizable multi-point temperature control unit
- Customizable horsepower and heating power of oil pump
- Brands OMRON, FUJI, TE. LS. MOELLER, ABB, WEST for electric appliance
- Range of temperature control:+25℃-300℃ for incoming water
- CE certificate
- Stainless steel integrated pipelines for less pipe resistance and rust
- Control mode: imported microcomputer or PLC(optional)
- Perfect safety protection, fault display, easy repair and maintenance even free of professionals
Applications:
Aluminium Alloy: Car accessories
Magnesium alloy: Communication device, navigation
Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic Injection molding, light guide plates, connectors, Chemical engineering, Shoe materials, Pringting and dyeing, Drying and banburying.
Specifications:
|
ITEM |
UNIT |
AEOT-20 |
|
Temp control range |
℃ |
Inter water temperature +25℃-300℃ |
|
Temp control accuracy |
℃ |
PID±1℃ |
|
Power supply |
|
AC3∮380V(3phase+Earth) |
|
Heat transfer medium |
|
Thermo conductive oil |
|
Cooling method |
|
Indirect cooling |
|
Expansion tank capacity |
L |
24 |
|
Heating capacity |
KW |
18/24 |
|
Pump power |
KW |
1.5 |
|
Pump flow |
M3/h |
6 |
|
Pump pressure |
Kg/cm3 |
2.2 |
|
Maximum power consumption |
KW |
25.5 |
|
Alarm function |
|
Pump reversal/Oil shortage/Overheating/Overload/Oil overflow |
|
Cooling water pipe |
inch |
1/2 |
|
Circulating water pipe |
inch |
3/4 |
|
Size(L×W×H) |
mm |
1150×420×1000 |
|
Remark:1. Tank volume in bracket is on behalf of external fuel tank volume 2. The pump pressure value in bracket matches the above pump flow in bracket |
||
Competitive Advantage:
- Strict quality control system
- We have the production certification organic heat transfer material heater
- High density heat insulation cotton and aluminum foil
- Our product is environmental and energy-saving
- Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST
- Imported microcomputer or PLC
- Customization thick copper pipe 1.0-1.2
Nowadays, Aode Machinery Co.,ltd continue to uphold the purpose of international standards designs and high quality products, applying ourselves to providing high standard products and whole-journey nanny service. Our products are widely applied in plastic injection molding, light guide plates, connectors, chemical engineering, compression casting, reaction kettles, rubber tires, calendaring, shoe materials, printing and dyeing, drying and banburying and tec. And widely sold to Japan, America, Italy, Brazil, Southeast Asia, Africa and etc. The brand recognition from the market is sufficient to prove that our temp. control system can replace the imported similar products. Belows are our honor clients.
