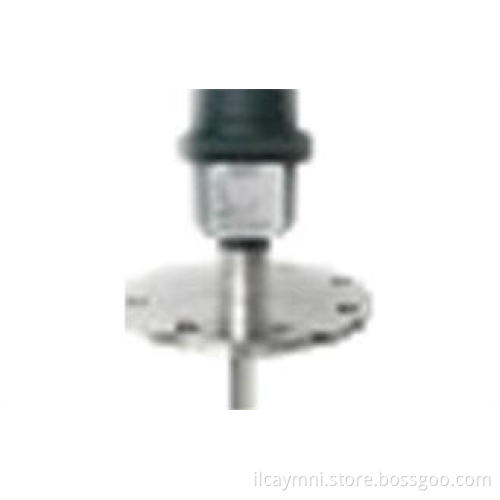

Intelligent radar liquid level transmitters for tank with high frequency
Quick Detail:
a. Non-contact measurement.
b. Applicable in the measurement of the solid and liquid.
c. Ease of installation, commissioning, maintenance-free.
d. Can be measured under vacuum conditions.
e. Wide measuring range and pressure range.
f. An explosion-proof design is safer.
g. Can be equipped with special software component systems.
Description:
Radar level meter is a liquid (material) level recording instrument in the measurement,the microwave pulse is sent
by the antenna, and then is reflected by the material surface , then is received by the radar systems, then is sent to
the electronic circuit, the microprocessor can identify the microwave pulse echo regenerate the material or the
surface of the liquid, the correct signal is done by intelligent software, up to millimeter accuracy, nonapplicable harsh
environments.
1 ) Explosion proof model:
a. The explosion proof model radar level meter uses plating plastic casing and internal rubber seal structure, so as to
ensure that when the transducer circuit part is fault, the spark will not bleed out. The product is suitable for the less
flammable medium iaIIBT5 Explosion levels continuous non-contact level measurement.
b. This product is explosion-proof type of intrinsically safe, explosion-proof mark: ExiaIIBT5. For the height of the
measured level. Powered by FBS-1 type barrier, supply voltage DC24V ± 10%, the short-circuit current of 210mA.
c. FBS-1 barrier of the products associated equipment, explosion-proof intrinsically safe type. Ex-mark: [Exia] IIB.
2 ) Electrical connection:
a. All cables are shielded cable, the maximum length of 500m. Distributed capacitance ≤ 0.1uF/Km,
the distributed inductance ≤ 1mH/Km.
b. Radar level meter installation site must be connected to the earth.
c. It can not be connected with other related equipment without explosion-proof test.
we have over 7 years experience in this line, Our daily output of radar level meter and ultrasonic level meter products reaches 10 sets. Our high quality product and good service have led us keep long good business relationship with many famous enterprises domestic and overseas.
Believe you will be satisfied with our product and service if you place a trial order with us. Looking forward to establishing cooperation relationship with your esteemed company.
Applications:
Used for grain bin,oil/ fuel/water/powder tank, liquid
Specifications:
| type | TF GUIDE61 | TF GUIDE62 | TF GUIDE 63 | |
|
application:
Max.measuring range: accuracy: process fitting:
antenna material:
process temperature:
process pressure:
signal output: |
Simple process condition liquids
0-20m ±10mm Thread G1½A
PP/PTFE
-40...120°C
-1.0...10bar
Two wire/RS485 4...20mA/HART |
Complicated process condition or strong corrosivity liquids
0-20m ±3mm flange
316L/PTFE
-40...200 °C
-1.0...40bar
Two wire/four wire/RS485 4...20mA/HART |
Complicated vessel or process liquids
0-35m ±3mm flange
316L
- 40...300°C
-1.0...60bar
Two wire/four wire/RS485 4...20mA/HART |
|
| type | TF GUIDE 64 | TF GUIDE 64(super high temperature) | TF GUIDE 66 | |
|
application:
Max.measuring range: accuracy: process fitting:
antenna material:
process temperature:
process pressure: work frequency:
signal output: |
store vessel or process vessel ,solid,powde 0-70m ±5mm flange
316L
-40...450°C
-1.0...30bar 6.3GHz Two wire/four wire/RS485 4...20mA/HART |
store vessel or process vessel solid
0-30m ±10mm flange
316L
-40...1150°C
-1.0...60bar 6.3GHz Two wire/four wire/RS485 4...20mA/HART |
small store vessel or process vessel ,liquid 0-25m ±3mm flange/thread G1½A 316L
-40...250°C
-1.0...60bar 26GHz Two wire/four wire/RS485 4...20mA/HART |
|
Competitive Advantage:
1.Competitive Price Offering
2.Special Time Delay Method
3.Stable And Precise Measurement In Very Short Time
