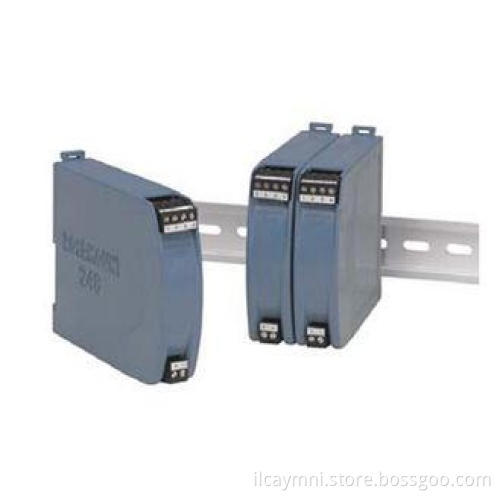

Rosemount 248R Rail Mount type Temperature Transmitter for common Single Point measurement application
Quick Detail:
· HART / 4-20 mA communication protocol
· Rail Mount transmitter type
· Accuracy: 0.20°C (0.36°F) or 0.1% of span
· input 2, 3, 4 wire RTDs, thermocouple, millivolt, ohm
· Operating temp: -40 to 185°F (-40 to 85°C)
· Input/output isolation tested to 500 Vac rms
· Less than 0.5 seconds update time
· 32 seconds maximum. 5 seconds default damping
· Custom Alarm and Saturation Levels
Description:
The Rosemount 248R Temperature Transmitter is designed to meet common Single Point measurement application requirements. This transmitter with HART protocol can easily be ordered with a variety of sensors (RTDs and thermocouples) and thermowells. The Rosemount 248R is provided in a rail mount configuration.. A PC-programmable interface is available, providing an easy-to-use configuration method from any PC.
Additional features include:
· Basic temperature transmitter offers a reliable solution for temperature monitoring points
· Standard transmitter design provides flexible and reliable performance in process environments
· Experience lower over-all installation costs when compared to wiring sensor directly, reducing the need for expensive extension wires and multiplexers
· Explore the benefits of a Complete Point Solution from Rosemount Temperature
Applications:
An installation ready solution that provides a variety of mounting options, transmitter configurations, and sensors/thermowells
Flexibility to meet your most demanding applications
Wireless output with >99% data reliability delivers rich HART data, protected by industry leading security
Simple and easy installation practices already used today for robust installations
Specifications:
| Key Specifications | |
| Digital Accuracy | 0.20°C (0.36°F) or 0.1% of span |
| Ambient Temperature Effect | ± 0.006°C/°C per 1.0°C (1.8°F) change in ambient (Pt100 RTD) |
| Stability | 0.1% reading or 0.1°C (0.18°F) for 1 year |
| Input | 2-, 3-, and 4-wire RTDs, thermocouple, millivolt, ohm |
| Output | 2-wire, linear with temperature or input on 4-20 mA/HART signal |
| Supply Voltage | 12 - 42.2V |
| Supply Voltage | 12 - 42.2V in HART Protocol 9 - 32V in FOUNDATION Fieldbus Protocol |
Competitive Advantage:
· Basic temperature transmitter offers a reliable solution for temperature monitoring points
· Standard transmitter design provides flexible and reliable performance in process environments
· Experience lower over-all installation costs when compared to wiring sensor directly, reducing the need for expensive extension wires and multiplexers
· Explore the benefits of a Complete Point Solution from Rosemount Temperature
