Gigabit Managed Optical Protection Media Converter
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | ShenZhen |
|---|---|
| Productivity: | 100% |
| Supply Ability: | 3000PCS/month |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | EXW |
| Certificate: | CE,ISO,SGS |
| Transportation: | Land,Air |
Gigabit Managed Optical Protection Media Converter for P2P Mode
KEY Functions:
- FX port with 1+1 automatic protection switching,switching time will less than 30ms
- Rack-Mountable
- Supports hot plugging

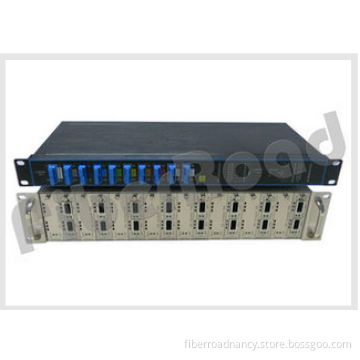

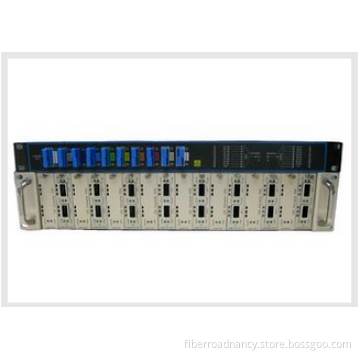

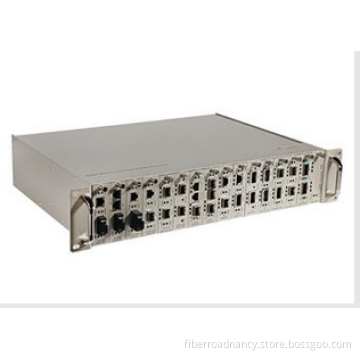

- Support 16-slot Rack management
- Powerful Network Management function(Web,SNMP,Console)
- Full State Led display
- Easy installation
- Fiber Port Supports functions monitoring for SFP modules

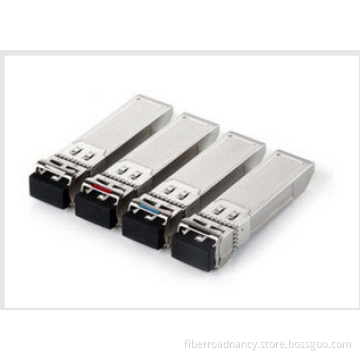

- Fiber Port Supports Standard SFP modules port
Technical Information:
|
Performance Data |
Technical Indexes |
|
Equipment function |
Media Converter |
|
Transmission Speed |
1.25Gb/s |
|
Access Type |
1.25G LAN/ 1.25G WAN |
|
Interface Type |

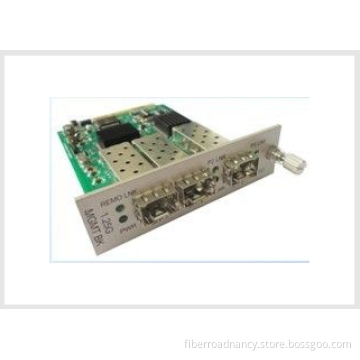

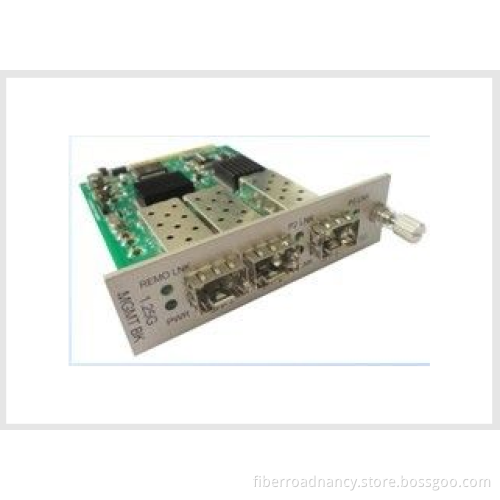

Type: 1*SFP to 2*SFP (backup protect) |
|
Transmission Distance |
SFP module: Up to 80Km |
|
Network management information: |
• Card type information • SFP fiber module detection • SFP fiber module DMI function ( Temperature , Voltage , Optical power ) • Link status detector • Remote card's status monitor ( only in pairs ) |
|
power requirement |
Rack-mountable : AC 85 ~ 220V OR DC -48V Standalone: AC 220V OR DC -48V Power consumption: ≤ 5.5W |
|
Work Environment |
Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% ( non-condensing ) |
|
Dimension |

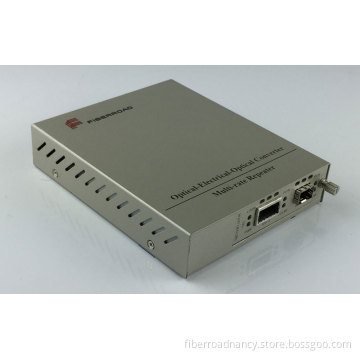

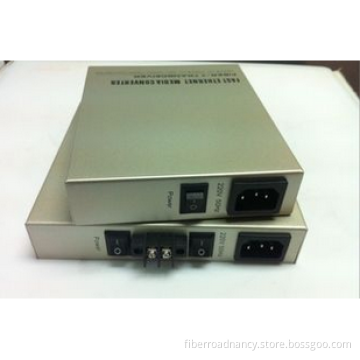

Card : 11.5mm ( W ) × 78mm ( D )× 26mm ( H )/87.3GS (NET WEIGHT) Standalone :156mm ( W ) × 128mm ( D ) × 32mm ( H )/ KGS (NET WEIGHT) |
MAIN APPLICATIONS
- This equipment is an optical transmission equipment for P2P mode, This is 1.25 Gb/s optical transmission equipment ,can realize the optical line 1 + 1 redundancy protection in point-to-point mode, it can provide Optical Port automatic protection switching. To realized 1* 1.25G or 1*155M SFP data to 2 Port 1.25 Gb/s optical Port for long distance transmission.
- The equipment support 2 Fx port with a hot-swappable SFP slot;
- This device uses a centralized management platform to monitor and manage the device, it is very convenient. Also supports SNMP.
- This equipment is high integration, low power consumption, stable performance, easy installation, can be widely used in telecommunications, electricity and financial industries.
