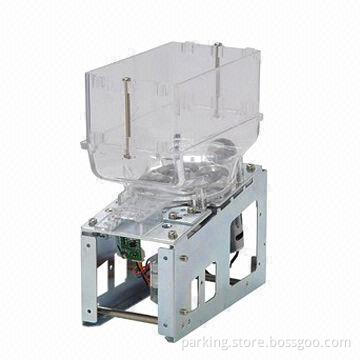

Card Dispenser and Card Collector, Suitable for Card Parking System and Auto-card Vending Machine
  • Card Dispenser and Card Collector, Suitable for Card Parking System and Auto-card Vending Machine
Card Dispenser and Card Collector, Suitable for Card Parking System and Auto-card Vending Machine

Card Dispenser and Card Collector, Suitable for Card Parking System and Auto-card Vending Machine

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • Nice design
    • Resistant to abrasion and corrosion fit for high or low temperature, dusty bad environment
    • Simulation manpower friction card issuers easy adjusting of card thickness
    • Hardware watchdog, micro-embedded real-time operating system to ensure reliable operation
    • Pre-dispense function accelerate dispensing speed
    • Provides RS232 and i/o level two control interface
    • Automatic voice warning: lower cards, empty cards or failure
    • Automatically reset: after mistakes alarm 30 or 100 seconds
    • Security recoveries: prevents lost card
    • Adjustable card thickness: 0.3 to 2.5m
    • Adjustable card boxes capacity
    • Motherboard slip design, easy card loading and main
    • Receiver card, read prepaid card
  • Specifications:
    • Operating voltage: 24V DC (maximum current 2A, static current is 0.1A)
    • Communication interface: RS-232/TTL
    • Used condition: installed in bin
    • Card thicknesses: 0.3 to 2.5mm (adjustable) (ex-work setting: 0.8mm)
    • Materials: paper/Mylar cards and PVC
    • Operating time: 0.5 second
    • Card capacity: 150 pieces x 0.8mm (if add lengthen box can add card capacity)
    • Card back bin capability: 40 pieces
    • Operating temperature: -20 to 85°C
    • Operating relative humidity: 30 to 90% RH
    • Net weight: 3.0kg
  • Applications:
    • Card parking system
    • Auto-card vending and ticket vending machine
    • High-way card dispensing system
  • Nice design
  • Resistant to abrasion and corrosion fit for high or low temperature, dusty bad environment
  • Simulation manpower friction card issuers easy adjusting of card thickness
  • Hardware watchdog, micro-embedded real-time operating system to ensure reliable operation
  • Pre-dispense function accelerate dispensing speed
  • Provides RS232 and i/o level two control interface
  • Automatic voice warning: lower cards, empty cards or failure
  • Automatically reset: after mistakes alarm 30 or 100 seconds
  • Security recoveries: prevents lost card
  • Adjustable card thickness: 0.3 to 2.5m
  • Adjustable card boxes capacity
  • Motherboard slip design, easy card loading and main
  • Receiver card, read prepaid card
  • Operating voltage: 24V DC (maximum current 2A, static current is 0.1A)
  • Communication interface: RS-232/TTL
  • Used condition: installed in bin
  • Card thicknesses: 0.3 to 2.5mm (adjustable) (ex-work setting: 0.8mm)
  • Materials: paper/Mylar cards and PVC
  • Operating time: 0.5 second
  • Card capacity: 150 pieces x 0.8mm (if add lengthen box can add card capacity)
  • Card back bin capability: 40 pieces
  • Operating temperature: -20 to 85°C
  • Operating relative humidity: 30 to 90% RH
  • Net weight: 3.0kg
  • Card parking system
  • Auto-card vending and ticket vending machine
  • High-way card dispensing system
