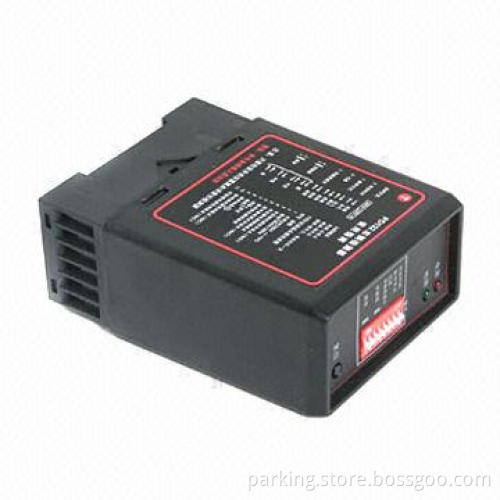

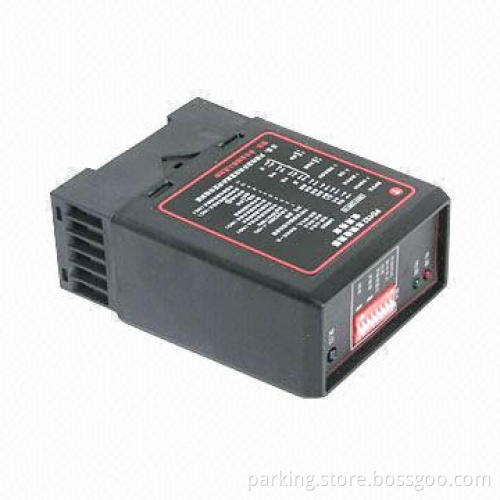

Loop Detector, Suitable for Monitoring and Safe Guarding Access Ways/Counting Vehicles

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Two-way output relays

Two outputs of them are unlimited when the corresponding loop is permanently covered, while the others are multi-mode that can be set by users

Direction detecting function can be used to statistics the vehicle flux

Principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles

Changes are picked up and evaluated by microprocessor

Ease of use due to automatic calibration when the operating voltage is applied

Specifications:

Working voltages: 110 to 220V AC and 12 to 24V DC
Power: 2.5W
Frequency range: 20 to 170kHz
Sensitivity: 8-grade adjustable
Reaction time: 100ms
Environmental compensation: automatic drift compensation
Loop inductance:
- Ideal: 80 to 300μH (including connection line)
- Maximum: 50 to 500μH (including connection line)
Loop connection wiring: 5m (maximum), twisted 20 times at least per meter
Total resistance:<10Ω
Operating temperatures: -20 to 65°C
Relative humidity: 95% (maximum)
Storage temperatures: -20 to 85°C
Size: 78 x 40 x 108mm
