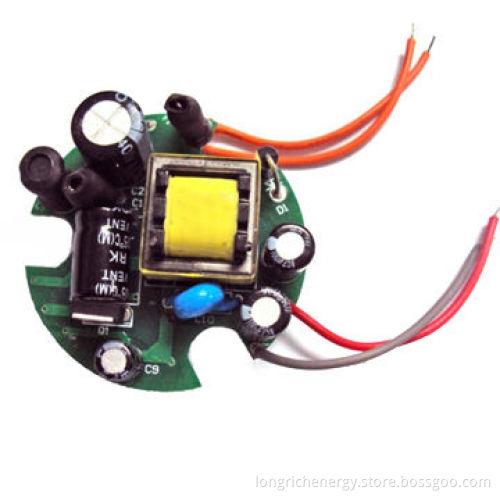

7W constant current LED driver
- Payment Type:
- T/T in Advance
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | T/T in Advance |
|---|
Product Description
Product Description
- Built-in constant current limiting circuit (C.C. mode)
- Compact dimension easy to install (internal power supply)
- Suitable for LED lightings
- Customized specification requirements accepted
- CE approved, meets EMC EN55015, EN61547, EN61000-3, EN61347-2-13, EN61347-1
- Rated power: maximum 7W
- Input voltage range: 100 to 260V AC
- Input frequency range/power: 50 to 60Hz, maximum 0.2A
- AC Inrush current: 14A/1ms
- Idle power: 0.29W
- Drive mode: constant current
- Output range:
- 17 to 36.5V DC, 200mA
- 14 to 25V DC, 320mA
- 3.5 to 12.5V DC, 700mA
- Current precision: ±3%
- Efficiency: 82%
- Protections: short circuit, over voltage and open-loop
- Dimension (φ x H): 42 x 17mm
- 17 to 36.5V DC, 200mA
- 14 to 25V DC, 320mA
- 3.5 to 12.5V DC, 700mA
