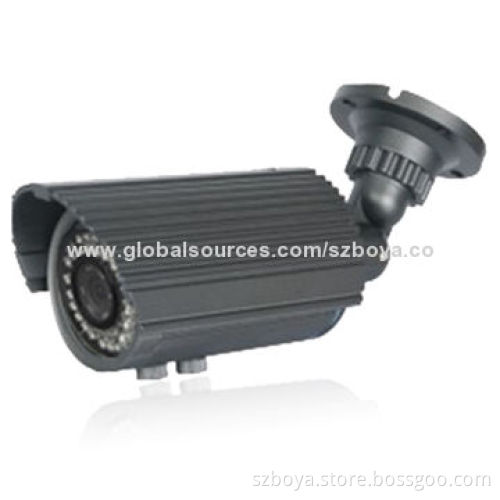

Super WDR & High Light Suppression, 800TVL SONY Double Scan CCD WDR Camera for Viewing Car License
  • Super WDR & High Light Suppression, 800TVL SONY Double Scan CCD WDR Camera for Viewing Car License
  • Super WDR & High Light Suppression, 800TVL SONY Double Scan CCD WDR Camera for Viewing Car License
Super WDR & High Light Suppression, 800TVL SONY Double Scan CCD WDR Camera for Viewing Car License
Super WDR & High Light Suppression, 800TVL SONY Double Scan CCD WDR Camera for Viewing Car License
Super WDR & High Light Suppression, 800TVL SONY Double Scan CCD WDR Camera for Viewing Car License
Super WDR & High Light Suppression, 800TVL SONY Double Scan CCD WDR Camera for Viewing Car License

Super WDR & High Light Suppression, 800TVL SONY Double Scan CCD WDR Camera for Viewing Car License

Payment Type:
T/T, Western Union or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union or MoneyGram
Product Description
Product Description
  •  Feature:
    • 1/3'' Sony 960H Double Scan CCD 663/662 / EFFIO-P DSP 4129
    • Super WDR ,Max.150dB.
    • High light Suppression,0-255grades
    • Support WDR and High Light Suppression work simultaneously
    • 72pcs 12miu ¢5 IR LED,60m IR Distance
    • 4-9mm/2.8-12mm/9-22mm  Megapixel Varifocal Lens
    • Electronic Zoom 0-255grades,Electronic Shutter Adjustable
    • Privacy Zone and Mirror,Motion Detction,3DNR
    • OSD cable/UTC Control ,optional
    • Waterproof ,IP66
  • Technical parameters:
    • Model: B6090WF
    • Image sensor: 1/3'' Sony 960H Double Scan CCD 663/662
    • DSP: SONY EFFIO-P 4129
    • Horizontal resolution: 800TVL
    • Minimum Illumination: 0.0001Lux,0Lux(IR ON) (800TVL)
    • Effective pixels:
    • PAL:976(H)x582(V) NTSC:976(H)x494(V)
    • S/N ratio: more than 50dB
    • Lens: 4-9mm/2.8-12mm/9-22mm  Megapixel Varifocal Lens
    • IR LED :72pcs 12miu ¢5 IR LED
    • IR distance:60m
    • Language: Chinese / English
    • UTC control: optional
    • Electronic shutter: PAL : 1/50~1/100,000 Sec; NTSC : 1/60~1/100,000 Sec
    • 1/50, 1/120,1/250, 1/500,1/1000, 1/2000, 1/4000, 1/10000,adjustable
    • Gamma characteristic:0.45
    • White balance: auto ATW/Manual/Push
    • AGC: auto Off/ Manual(Low/Middle/High),Max.55dB
    • BLC: low/high/off
    • DNR: 3DNR, High/Middle/Low adjustable
    • WDR: max.150dB
    • High light suppression: 0-255grades
    • Privacy zone: on(1-15areas)/off
    • Motion detection: 0-127
    • Camera ID display: on/off
    • Image adjustable: mirror, brightness, contrast, sharpness, hue, gain
    • Day&night: auto/ B&W/color
    • Sync system: internal Synchronization
    • Video output: 1Vp-p 75 Oms , Negative
    • Power input: 12V± 10% DC
    • Operation temperature: 10 to+ 50 deg. C, RH 95% Max
  • 1/3'' Sony 960H Double Scan CCD 663/662 / EFFIO-P DSP 4129
  • Super WDR ,Max.150dB.
  • High light Suppression,0-255grades
  • Support WDR and High Light Suppression work simultaneously
  • 72pcs 12miu ¢5 IR LED,60m IR Distance
  • 4-9mm/2.8-12mm/9-22mm  Megapixel Varifocal Lens
  • Electronic Zoom 0-255grades,Electronic Shutter Adjustable
  • Privacy Zone and Mirror,Motion Detction,3DNR
  • OSD cable/UTC Control ,optional
  • Waterproof ,IP66
  • Model: B6090WF
  • Image sensor: 1/3'' Sony 960H Double Scan CCD 663/662
  • DSP: SONY EFFIO-P 4129
  • Horizontal resolution: 800TVL
  • Minimum Illumination: 0.0001Lux,0Lux(IR ON) (800TVL)
  • Effective pixels:
  • PAL:976(H)x582(V) NTSC:976(H)x494(V)
  • S/N ratio: more than 50dB
  • Lens: 4-9mm/2.8-12mm/9-22mm  Megapixel Varifocal Lens
  • IR LED :72pcs 12miu ¢5 IR LED
  • IR distance:60m
  • Language: Chinese / English
  • UTC control: optional
  • Electronic shutter: PAL : 1/50~1/100,000 Sec; NTSC : 1/60~1/100,000 Sec
  • 1/50, 1/120,1/250, 1/500,1/1000, 1/2000, 1/4000, 1/10000,adjustable
  • Gamma characteristic:0.45
  • White balance: auto ATW/Manual/Push
  • AGC: auto Off/ Manual(Low/Middle/High),Max.55dB
  • BLC: low/high/off
  • DNR: 3DNR, High/Middle/Low adjustable
  • WDR: max.150dB
  • High light suppression: 0-255grades
  • Privacy zone: on(1-15areas)/off
  • Motion detection: 0-127
  • Camera ID display: on/off
  • Image adjustable: mirror, brightness, contrast, sharpness, hue, gain
  • Day&night: auto/ B&W/color
  • Sync system: internal Synchronization
  • Video output: 1Vp-p 75 Oms , Negative
  • Power input: 12V± 10% DC
  • Operation temperature: 10 to+ 50 deg. C, RH 95% Max
