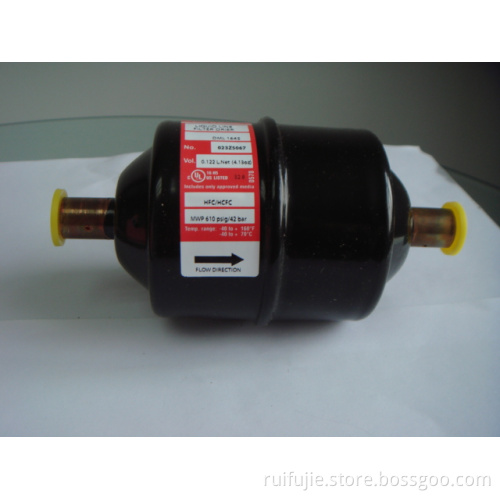

Danfoss Dcl/Cml Filter Drier

Specifications

Eliminator Liquid line filter driers protect refrigeration and air-conditioning systems from moisture, acids, and solid particies.


Eliminator Liquid line filter driers protect refrigeration and air-conditioning systems from moisture, acids, and solid particies. With theses contaminants eliminated, systems are safer from harmful chemical reactions and from abrasive impurities.
Thesre are two types of Eliminator cores.
1. Type DML driers have a core composition of 100% molecular sieves.
2. Type DCL contain 80% molecular sieves with 20% activated alumina.
3. All Eliminator driers have a solid core with bindling material held to an absolute minimum. Core selection is primarily based on the refrigerant oil used in the system.

FEATURES
Type DML
1.100% 3A molecular sieves core.
2. High drying capacity minimizing the risk of acid formation(hydrolysis).
3. Optimized for HFC refrigerants(R134a, R404a, R410a, ect. )with POE or PAG oils. Compatible with R22.
4. Will not deplete oil additives.

Type DCL
1.80% 3A molecular sieves with 20% activated alumina.
2. Perfect core blend for systems that operate at high drying capacity.
3. Optimized for CFC and HCFC refrigerants(R22, R502, etc) with mineral or alkyl benzene oils. Compatible with HFC's and refrigerant blends.

The Shell
1. UL approved for MWP up to 42 bar
2. Avaliable with solder and flare connections
3. Compact 3 cubic inches drier ideal for refrigeration and air conditioning units
4. Corrosion resistant powder-painted finish. Can be used in all environments including marine applications.
5. Allows installation with any orientation provided the arrow is in the flow direction.
6. Avalibale in sizes from 3 to 75 cubic inches.

The filter
1.25μ M filter provides high retention with minimal pressure drop.
2. Thermally stable up to 120C degree.
