Elm327 Icar2 Bluetooth OBD Scanner Icar 2 Elm327 Diagnostic Interface

2014 New Vgate iCar 2 WiFi Self-Diagnosis Support Android/ IOS/PC OBDII Protocols Support Multi-brands ELM327 WiFi

WiFi iCar 2 Self-diagnosis any car that supports OBDII protocols.

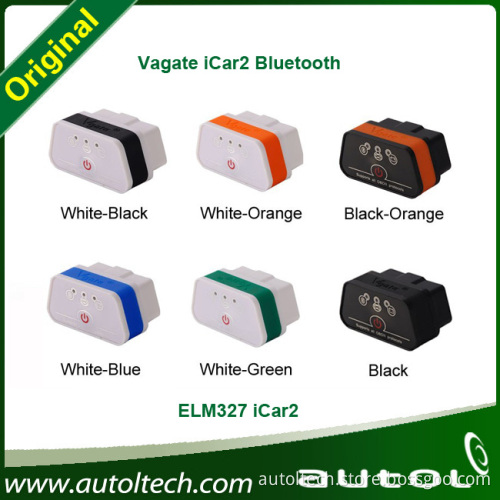

Full Black and Black & Orange and White & Orange colors is popular


Note:

1. This is a Multi-color for choice (6 kinds), please tellus the color you like when you order it, if without saying, we will ship it in random.

2. This is WiFi version, iCar(WiFi version) support for software applications forios(iPhone4/4s/5/5s/iPad/mini), Android, java, etc)

3. Attention:
The Switch is not for the power light, it is when Icar2 WiFi are not in use(your PC or iPhone are not connect with it), it will be Stopped communication after half an hour, then you can turn on the Switch to auto sleep it.

Features:
1 Small size, compact structure. Plug and never unplug
2 Stable wireless connection
3 No wires or batteries (adapter is powered by the diagnosis size sockets)
4 Stop communication, wait half an hour, auto sleep
5 Supports all OBDII protocols
6 The adapter uses the fastest and most reliable ARM chips


The device is a small adapter that plugged into the vehicle OBD-connector.

On Wi-Fi, it connects to any computer, tablet or smartphone, With associated diagnostic procedures. Doing these simple operations, you will be able:
1 Read, erase and display code descriptions problems - both standard and
Spetskodov manufacturers.
2 Measure the fuel consumption.
3 Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.
4 Turn off the MIL (signal Check Engine).
5 Download data to external media in a variety of formats for later printing.
6 Record various parameters, display graphics in real time, and more.

With iCar you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.


ICar 2 scantool is a high-quality automotive scanning tool, supports all OBD-II protocols:

Automatic
1. SAE J1850 PWM(41.6Kbaud)
2. SAE J1850 VPW(10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP(5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP(fast init, 10.4 Kbaud)
6. ISO15765-4 CAN(11bit ID, 500 Kbaud)
7. ISO15765-4 CAN(29bit ID, 500 Kbaud)
8. ISO15765-4 CAN(11bit ID, 250 Kbaud)
9. ISO15765-4 CAN(29bit ID, 250 Kbaud)
A. SAE J1939 CAN(29bit ID, 250*Kbaud)
B. USER1 CAN(11*bit ID, 125*Kbaud)
C. USER2 CAN(11*bit ID, 50*kbaud)
*default settings(user adjustable)


The type of support:

1. Works with all OBD-II compliant vehicles
2. Wireless (WiFi version) 10~20 meter
3. ICar(WiFi version) support for software applications for ios(iPhone4/4s/5/5s/iPad/mini), Android, java, etc)


Package List:

1X iCar 2 WiFi for iPhone iPad PC
1X CD
1X Carrying box
