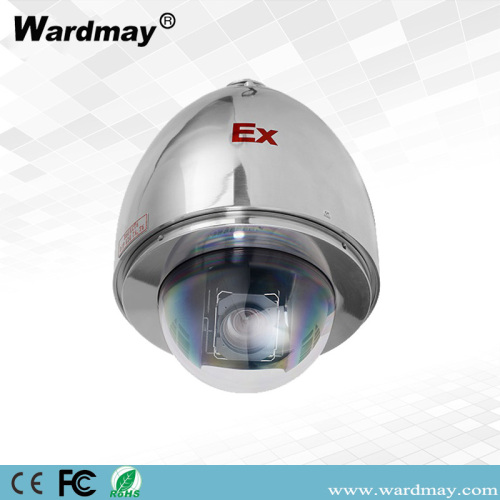

WDM-EX700PT is an explosion-proof High Speed Dome Camera tailor-made for the rigorous requirements for hazardous areas. Featuring 304 stainless steel, 20X optical zoom, intelligent variable speed function, high quality motor, built-in power converter and heater, this security camera delivers the high image quality and reliability demanded in the most challenging environments.
Applicable for the factories with the explosive mixtures formed from class IIA, IIB and IIC T1-T6 group flammable gas, steam with air in area No.1 , No.2, and appearing the explosive hazardous area due to the mixture of flammable dust and air in area No.20, No.21 and No.22.
The CCD Explosion-Proof Camera is suitable for application such as oil field, chemical plant, port, oil storage, steamship, oil drilling platform, gas stations, coal mine, aviation, military, medicine, steel, firecrackers production, machinery, food processing and storage. If this Explosion-Proof Camera didn't meet your needs, please take have a look at our other AHD EXplosion-Proof Camera and IP Explosion-Proof Camera.
Features
* 700TVL High Resolution
* 20X optical focus, 5-90mm/F1.8 to 3.2
* Mini illumination 0.00001Lux/F1.2 (color)
* no light, no problem, color image in day and night
* IP68 Waterproof
* Explosion-proof housing
* 304 stainless steel surface treated with fluorine-carbon spray. elegant structure. explosion proof, dust proof, water proof, rust-proof
* Optics class toughened ultra clear white explosion proof glass, flux rate higher than 96%
Specifications
| Camera | ||
| Model | WDM-EX700PT | WDM-EX200HPT |
| Sensor | 1/3 [ SONY Super HAD II CCD | 1/2.8" CMOS, NVP2441+IMX322/IMX291 |
| System | PAL/NTSC | |
| Resolution | 700TVL | 1080P |
| Effective pixels | PAL: 795(H)×596(V) / NTSC: 811(H) * 508(V) | 1920*1080 |
| S/N Ratio | 52dB(Min)/60dB(Max)(AGC ON/OFF) | 52dB(Min)/60dB(Max)(AGC ON/OFF) |
| Focus length | 5-90mm/F1.8 to 3.2 | |
| Optical focus | 20X | |
| Presets | 256 | |
| Mini illumination | 0.00001Lux/F1.2 (color) | |
| Image Quality | Color video anytime in low light conditions | |
| Day/night mode | Color | |
| Signal-to-Noise Ratio | >75db | |
| Electrical Connectivity | Composite cable | |
| Rated Temperature | -30 degree ~ +70 degree | |
| Atmospheric Pressure | 86~106kpa | |
| Relative Humidity | <=95%RH(+-25 degree) | |
| Rotation range | Horizontal 360°unlimted rotation, Vertical 90°,auto reversal | |
| Rotation speed | Horizontal & Vertical Min 0.01°,Max 200°/S | |
| Material | 304 Stainless steel | |
| Ingress Protection | IP68 | |
| Interface spec | G-1/2" | |
| Method of installation | bracket mount, terminal box complete set included | |
| Atex Mark | II 2G Ex db IIC T6 Gb, II 2D Ex tb IIIC(85 degree) Db | |
| IEC Mark | Ex dIIC T6 Gb/DIP A20 TA, T6 | |
| Input Voltage | DC12V | |
| Working Current | <=2A | |
