Rt5370 150m Wireless WiFi Module for IP Cameras
- Payment Type:
- T/T, Paypal, Money Gram, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen of China |
|---|---|
| Payment Type: | T/T, Paypal, Money Gram, Western Union |
Product Description
Product Description

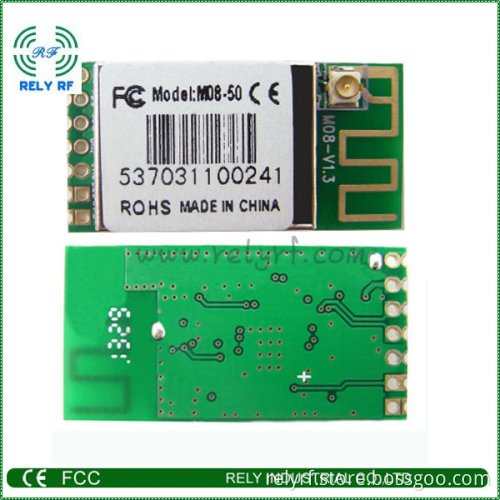

RT5370 150M wireless WiFi module for IP cameras
RY3M08 is a WLAN module supporting IEEE 802.11 b/g/n standards with 6-pin
connector supporting USB 2.0 /1.1 interface.
This is a small form factor and low cost compact WLAN module designed for
the wireless connectivity of products with embedded system.
This module operates in 2.4GHz ISM frequency band, it applies a highly
integrated MAC/BBP and RF single chip RT5370 with 150Mbps PHY rate
supporting.
This module can be built-in other embedded applications such as IP Camera, IP
set top box, GPS, Internet radio apparatus, it can be directly soldered on a main
PCB.
1.1 Features
802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps
802.11n: (20MHz) MCS0-7, Support up to 72Mbps (40MHz) MCS0-7,
Support up to 150Mbps OFDM, Peak rate 150Mbps, Peak throughput 90Mbps.
Security support for 64/128 WEP, WPA, WPA2, TKIP, AES Operates in 2.4GHz
frequency bands.
Power Management
Antenna configuration: Built-in On Board
![Rt5370 150m Wireless WiFi Module for IP Cameras]()
![Rt5370 150m Wireless WiFi Module for IP Cameras]()
4. Environment
4.1 Temperature
4.1.1 Operating Temperature
Continuous reliable operation in ambient temperature: -10ºC to +60ºC.
4.1.2 Storage Temperature
The product is not damaged or degraded when keeping in -20ºC to +85ºC.
4.2 Humidity
4.2.1 Operating Humidity Conditions
The product should be capable of continuous reliable operation when subjected to
relative humidity in the range of 20% to 80% (non-condensing) .
4.2.2 Non-Operating Humidity Conditions (including warehouse)
The product should not be damaged or degraded when kept in the place (where
relative humidity range is in the range of 20% to 80%) for 48 hours.
5. Disclaimer
THESE MATERIALS AND INFORMATION ARE PROVIDED "AS IS" WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED , INCLUDING BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT.
We uses reasonable efforts to include accurate and up-to-date information on this
document; it does not, however, make any representations as to its accuracy or
completeness of the information, text, graphics, links or other items contained within
these materials. Your use of this Document is at your own risk. RELY, its suppliers,
and other parties involved in creating and delivering this Document's contents shall
not be liable for any special, indirect, incidental, or consequential damages,
including without limitation, lost revenues or lost profits.
RY3M08 is a WLAN module supporting IEEE 802.11 b/g/n standards with 6-pin
connector supporting USB 2.0 /1.1 interface.
This is a small form factor and low cost compact WLAN module designed for
the wireless connectivity of products with embedded system.
This module operates in 2.4GHz ISM frequency band, it applies a highly
integrated MAC/BBP and RF single chip RT5370 with 150Mbps PHY rate
supporting.
This module can be built-in other embedded applications such as IP Camera, IP
set top box, GPS, Internet radio apparatus, it can be directly soldered on a main
PCB.
1.1 Features
802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps
802.11n: (20MHz) MCS0-7, Support up to 72Mbps (40MHz) MCS0-7,
Support up to 150Mbps OFDM, Peak rate 150Mbps, Peak throughput 90Mbps.
Security support for 64/128 WEP, WPA, WPA2, TKIP, AES Operates in 2.4GHz
frequency bands.
Power Management
Antenna configuration: Built-in On Board
4. Environment
4.1 Temperature
4.1.1 Operating Temperature
Continuous reliable operation in ambient temperature: -10ºC to +60ºC.
4.1.2 Storage Temperature
The product is not damaged or degraded when keeping in -20ºC to +85ºC.
4.2 Humidity
4.2.1 Operating Humidity Conditions
The product should be capable of continuous reliable operation when subjected to
relative humidity in the range of 20% to 80% (non-condensing) .
4.2.2 Non-Operating Humidity Conditions (including warehouse)
The product should not be damaged or degraded when kept in the place (where
relative humidity range is in the range of 20% to 80%) for 48 hours.
5. Disclaimer
THESE MATERIALS AND INFORMATION ARE PROVIDED "AS IS" WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED , INCLUDING BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT.
We uses reasonable efforts to include accurate and up-to-date information on this
document; it does not, however, make any representations as to its accuracy or
completeness of the information, text, graphics, links or other items contained within
these materials. Your use of this Document is at your own risk. RELY, its suppliers,
and other parties involved in creating and delivering this Document's contents shall
not be liable for any special, indirect, incidental, or consequential damages,
including without limitation, lost revenues or lost profits.
