0-10V Output Dimmer-Touch Panel

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	T/T

Product Description

Working temperature: -20-60
Supply voltage: AC90-240V
Output: Voltage signal 0-10V
Net weight: : 165g
External dimension: L86*W86*H37 mm
Packing size: L95*W95*H42 mm
Regulating output current: <15mA
Output power: <5W

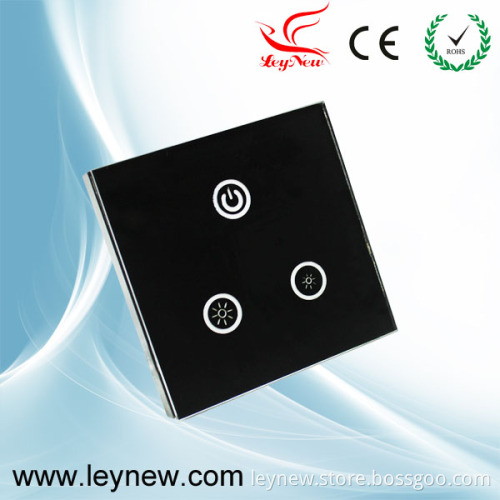

Touch panel dimmer is a kind of controller can be realized 0-10V voltage output, which adopts glass panel designed, beautiful and fashion appearance. Besides high precision capacitive touch control chip is used to increase the sensitivity of touching, reducing the error trigger. This product input voltage is AC90-240V, and output 0-10V voltage signal, also can be used with 0-10V dimmer of our company.
AC IN: Power input interface, input voltage range is AC90-240V.
0-10V: Voltage signal output interface, V+ connect positive pole and V- connect grounding line, the output voltage range is DC0-10V.
