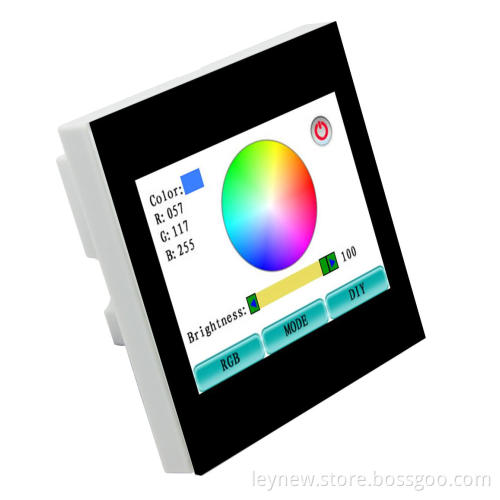

Fashionable DC12-24V Touch Screen Multi-Function Controller

Summarization
Touch screen controller is a led controller which is newly independent developed by our company. It adopts capacitive touch screen and LCD technology, making user control lighting in a more direct and convenient way. This controller is used for controlling RGB light, can realizecolour modulation, dimming and dynamic mode change and so on.
Feature 1: User can pick color through touch circular color disk to control LED grouped lamp. It is very insensitive and intuitive.
Feature 2: It adds custom output modes, user can at most define a group of 16 units of color output. Color, brightness, hold time and variation time in each unit can be defined by yourself. It can define up to 8 groups of custom color.
Feature 3: User can autonomously choose languages, touch sound tips, and output main switch.
Feature 4: This product can save data when power off, all the status before power off such as user settings and self-defining data can be kept, screen will be off if no touch in 30s, on when you touch again.
Technical Parameters
Supply voltage: DC12-24V
Working Consumption: Max0.36W(12V)-Max0.6W(24V)
Display resolution: 320*240
Controlling method: Capacitive touch
0utput: Max4A *3CH common anode
Output power: Max144W(12V)-Max288W(24V)
Net weight: 100g
Gross weight: 150g
External Size: 89*86*30 mm
Carton size: 500*275*310mm
PWM frequency: 1 KHZ
