Waterproof Made in China Electric Equipment Outdoor Cabinet 1 - 10kVA
  • Waterproof Made in China Electric Equipment Outdoor Cabinet 1 - 10kVA
Waterproof Made in China Electric Equipment Outdoor Cabinet 1 - 10kVA
Waterproof Made in China Electric Equipment Outdoor Cabinet 1 - 10kVA
Waterproof Made in China Electric Equipment Outdoor Cabinet 1 - 10kVA

Waterproof Made in China Electric Equipment Outdoor Cabinet 1 - 10kVA

Payment Type:
L/C, T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Payment Type: L/C, T/T
Product Description
Product Description
 waterproof made in china electric equipment outdoor cabinet

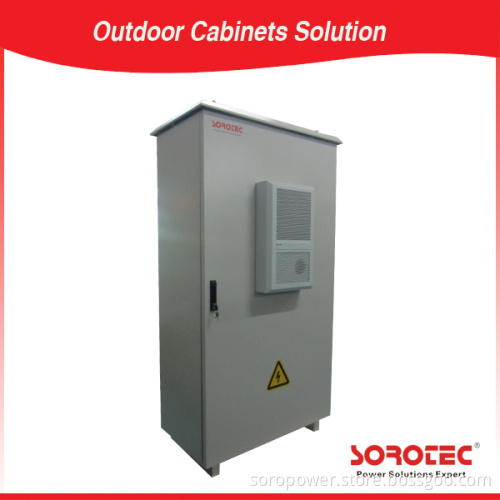

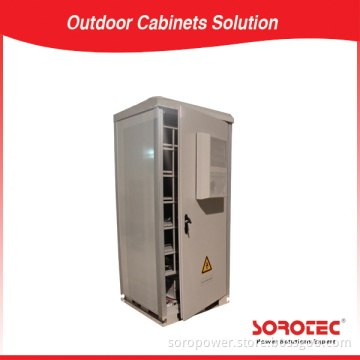

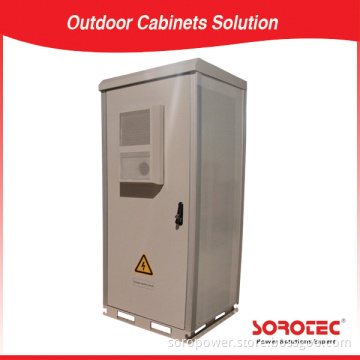

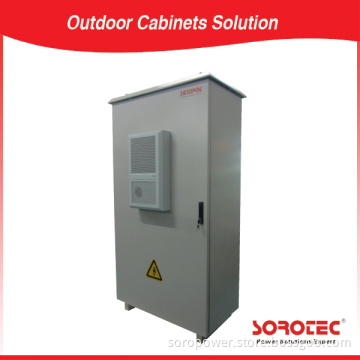

IP55 Outside Plant Power Outdoor Cabinet Outdoor cabinet is the high protection grade battery cabinet Specialized for the outdoor base station power supply Facilities.The system integrate of Intelligent temperature Controlled ventilation system, heater and reserve battery Installation space.The high protection grade battery Cabinet and the advanced temperature control design
Guarantee the reliable operation of the system in the Outdoor environment



Advantages and Characteristics:

1.Wide working temperature range:-10--+45° C( Southern type), -40--+45° C(Northern type)

2.The battery warehouse space:Two groups reserved battery installation space, each group capacity biggest to150AH

3.Easy maintenance:Completely front-side operation and maintenance

4.Easy to install:Suitable for the ground, platform of roof, the tower platform etc

5.Protection level:IP44, effectively separated from external factor, guarantee equipment can operate reliably

6.Intelligent ventilation system:Effectively reduce the system consumption

7.Security design:With the intelligent entrance guard alarm function and strong prevention of burglary module

Model HW9110E 1-10KVA
1KVA        2KVA        3KVA 6KVA 10KVA
Capacity 1KVA/0.7KW 2KVA/1.4KW 3KVA/.1KW 6KVA/4.2KW 10KVA/7KW
Nominal Voltage 220/230/240VAC
Nominal Frequency 50HZ/60HZ
Input
Voltage Range 115~295VAC(±3VAC) 176~297VAC(±3VAC)
Frequency Range 50HZ:(46HZ~54HZ); 60HZ:(56HZ~6HZ)
Soft Start 0~100% 5sec
Power Factor 0.98
Output
Voltage Precision 223/230/240x(1±2%)
Frequency Precision 50/60HZ±0.05HZ
Power Factor 0.7/0.8(Optional) Standard 0.7
Wave Distortion Linear load<3% Non-linear<6%
Overload Capability Overload(110%~150%)for 30 seconds,then automatically transfer to bypass.when load is normal,it can automatically transfer to normal mode.
Crest Factor 3:1
Transfer Time  0MS(AC to DC)
Battery
DC Supply Voltage 36VDC 96VDC 96VDC 240VDC 240VDC
Charge Current   4A/8A(optional)   4A/8A(optional)   4A/8A(optional)      4.2A               4.2A
Internal Battery Caoacity (38/65/80/100AH)optional
Panel Displsy
LED Load level/Battery level,Battry indicator,Unility Power,Bypass,Overload,Fault
Communications
Communicate Interface RS232,SNMP Card(optional)
Work Environment
Temperature -40° C~50° C
Humidity 0~95%(Non-condensing)
Storage Temperature -25° C~55° C
Elevation <1500m
Physical Characterisstics
Weight(KG) N.W 85 125 125 150 155
Dimensions(WxDxH)mm 613x60x954 650x753x1227 650x753x1227 940x940x1770 940x90x1770
