Basic Specification
| MODEL NO. | AK075G-XXXYYYWZ |
|---|---|
| N.W/pcs | 70g |
| Pcs/Carton | 100pcs |
| Dimension (mm) | 60*41*35 |
| G.W/Carton | 8.7KG |
| Usage | Electronic product, Game Player, Laptop, Linear, Mobile Phone, Other, Power, Switching |
| Connect Type | Plug In |
| Output Type | DC |
Detail Description
- Input Voltage：100-240Vac
- Input Current：0.35A
- Frequency：50-60Hz
- Efficiency Level：V
- Low Standby Power：0.3W Max
- Output Voltage Tolerance：±5%
Certificates Obtained:
CB Report (Global): IEC60950-1/IEC60065
CCC Certificate (China): GB4943-2001/GB8898
GS Certificate(Europe): EN60950-1/EN60065
CE Certificate(Europe): EN55022, 55024/55013,55020
BS Certificate(Britain): BS EN60950-1/BS EN60065
cTUVus Certificate(North America): UL60950-1/UL60065
SAA Certificate(Australia): AS/NZS 60950.1 AS/NZS 60065
KC Certificate(Korea): K60950-1/K60065
PSE Certificate(Japan): J60950-1/J60065
| MODEL NO. | OUTPUT(V) | OUTPUT(A) | TPUT(W) MAX |
| AK075G-XXXYYYWZ | 5.0-7.0 | 0.01-1.50 | 7.5W |
| AK075G-XXXYYYWZ | 7.5-8.99 | 0.01-1.00 | 7.5W |
| AK075G-XXXYYYWZ | 9.0-12.0 | 0.01-0.833 | 7.5W |
Reliability:
Burn in: 100% full load, 40±5℃, 4 hours
Leakage Current: 0.25mA Max. at 240Vac
Voltage Withstand (Between Primary and Secondary): 3000Vac,60S, 5mA Max.
Insulation Resistance (Between Primary and Secondary): 20MΩ min at 500V DC
MTBF: over 30,000 hours @ 25 ℃ with full load according to MIL-HDBK-217F.
Protection:
Short Circuit Protection: The power supply will recover automatically after fault removed
Over Current Protection: The power supply will recover automatically after fault current removed
Over Voltage Protection: The power supply will be shutdown when output voltage exceeds rated voltage by 150%-180%, and recover automatically after fault removed.
Environmental Specifications:
Operating Temperature: 0º C to 40 º C at maximum load
Storage Temperature: -20 º C to 85 º C
Storage Relative Humidity: 5% to 95% non-condensing
Immunity:
Radiation: 61000-3-2
Electrostatic Discharge: 61000-4-2
Electromagnetic Field Radiation：61000-4-3
Instantaneous Discharging：61000-4-4
Surge：61000-4-5
Conducted Interference：61000-4-6
Voltage Interruption and Variation：61000-4-11
EMC Compliance
North American Market FCC: FCC Part 15 Class B
European Market EMC: EN55013/55022 Class B
Chinese Market: GB9254-2008/GB17625.1-2003/GB13837-2003/GB17625.1-2003
Australian Market C-TICK: CISPR13/22 Class B

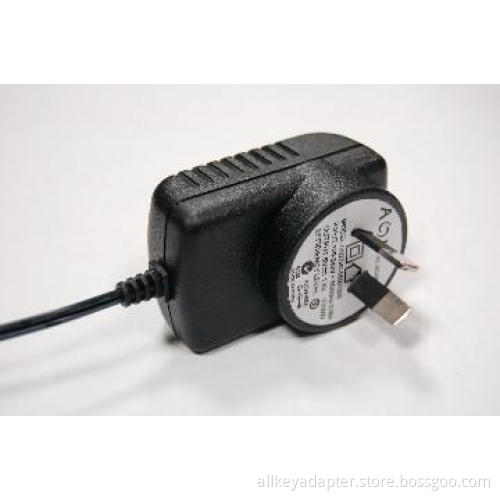

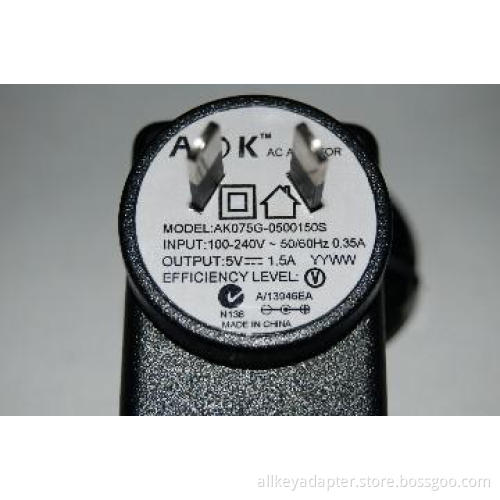

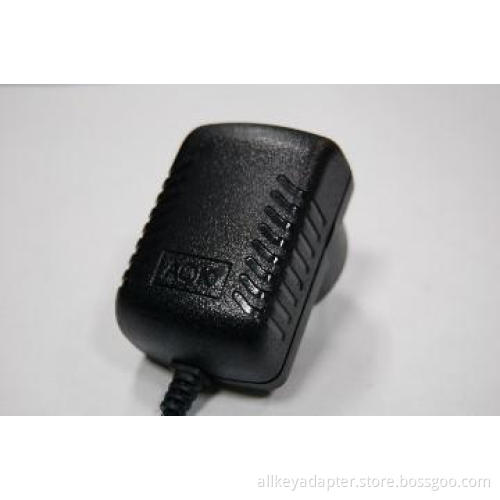

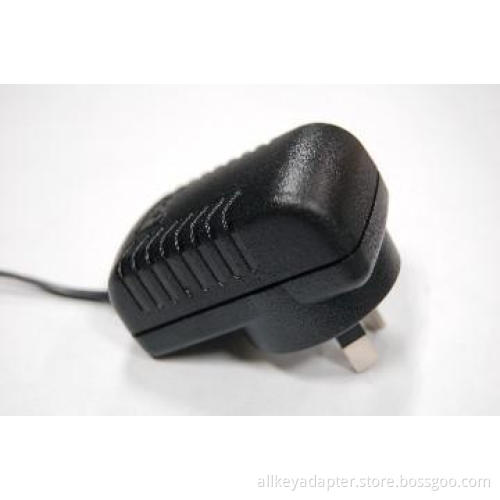

7.5W Wall Plug-in Adapter Package
| Model No. | N.W/pcs | Pcs/Carton | G.W/Carton | Dimension (mm) | White Box (mm) |
| CCC UL PSE Certified Adapter | 67g | 100 | 8.6kg | 60*39*31 | L85*W49*H64 |
| GS KC Certified Adapter | 73g | 100 | 9.2kg | 60*39*44 | L85*W49*H64 |
| BS Certified Adapter | 77g | 100 | 9.5kg | 60*49*34 | L85*W49*H64 |
| SAA Certified Adapter | 70g | 100 | 8.7kg | 60*41*35 | L85*W49*H64 |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 3000pcs |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| Delivery Details | 20 working days after receive the advance to All-Key account |
| FOB Port | Shenzhen |
| Loading Info | ocean shipping or express |
| Packing Info | 20 working days after receive the advance to All-Key account |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
