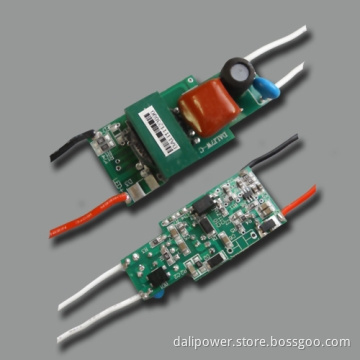

7W Non-electrinical Capacitor LED Driver

7W Non-electrinical Capacitor LED Driver

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Input voltage	100-240V AC
Output voltage	12-24V
Output current	300mA
Dimension	L53W20H16mm
Power	7W
Life	50,000H
Dimmable	No

Detail Description

Features:

Universal AC input and full range
Protections: OCP and SCP
Driving 4 or 7 pcs 1W LEDs in series
Dielectric strength: 2kV AC, leakage current 5mA, 60 seconds
Built-in isolated constant current LED drivers
Low-noise and environment-friendly
Use highly efficient, steady and low-loss switch control chip
Burn-in test: 100% for at least 4 hours under working temperature of 40°C
Application: LED Bulb light

Technical data:

Power:4-7W
Input voltage range: 100-240V AC
Frequency: 50 to 60Hz
Power factor: 0.7(typical)
Power efficiency: 82%
Output voltage: 12to 24VDC
Output current: 300mA (typical value),310mA (maximum)
Operating temperature: -40 to 65°C
Humidity: 35 to 80% RH
MTBF calculation: up to 50,000 hours lifetime
Naked PCB
Dimension (L x W x H):53*20*16mm
Weight: 20g

All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.

Additional Information

Payment Terms	L/C, T/T
Minimum Order	1-99PCS
Lead Time / Delivery Time	10 Day(s)
Sample Available	YES
Delivery Details	FOB SHENZHEN
FOB Port	Shenzhen
Loading Info	Air transport or sea shipment
Packing Info	50-100pcs
Target Market(s)	North America, Oceania, Southeast Asia, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
