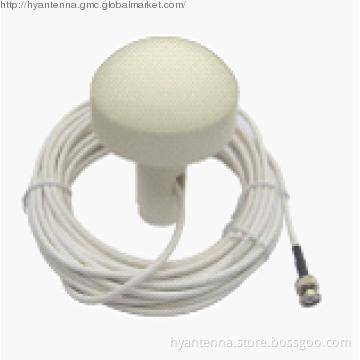

40dBi New GPS Marine Antenna With BNC Connector
Model |
TA070023 |
Electrical specifications | |
Frequency range -MHz |
1575.42 |
VSWR |
≤2.0 |
Bandwidth-MHz |
±5 |
LNA Gain(Without cable)-dBi |
40 |
Noise Figure -dBi |
<1.5 |
Polarization |
RHCP |
Impedance -Ω |
50 |
DC Voltage -V |
3-5 |
Mechanical specifications | |
Cable - m |
RG58,10 |
Connector |
BNC or other |
Dimension -mm |
Φ95×130 |
Net Weight -g |
1380 |
Installation |
Pole |
Operation Temperature-℃ |
-30~+85 |
Waterproof |
IP67 |
Description： It is applied to car navigation, logistics positioning, sea navigation and so on.
Additional Information
| Payment Terms | T/T, Western Union, Others |
|---|---|
| Minimum Order | 100 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| FOB Port | Shenzhen |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
