Household Wireless Optical Smoke Detector Dustproof Ac220v En14604
  • Household Wireless Optical Smoke Detector Dustproof Ac220v En14604
Household Wireless Optical Smoke Detector Dustproof Ac220v En14604
Household Wireless Optical Smoke Detector Dustproof Ac220v En14604
Household Wireless Optical Smoke Detector Dustproof Ac220v En14604

Household Wireless Optical Smoke Detector Dustproof Ac220v En14604

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
Model: LYD-614ACR Applications: Household, Hotel
Color: White Voltage: AC220V
Static Current: Alarm Current:



Household Wireless Optical Smoke Detector Dustproof AC220V EN14604





Model:LYD-614ACR





Quick Details:



1.Photoelectric sensor

2.Easy installation and maintenance

3.Interconnected with 40 Lydian detectors

4.CE & EN14604





Description:

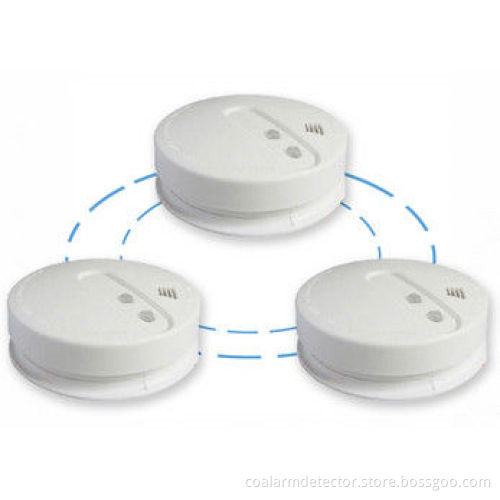

This detector has been design with both transmitter and receiver in the electronics.  Detectors could be wireless interlinkable with each other. Once one unit alarms, it will send alarm signal to trigger the other alarms.

It has a DIP switch for setting the detectors ID to avoid receiving other similar alarm signals.   Only detectors with the same ID can make up an interconnection group.





Applications:

The smoke detector used to detect the smoke ,which are widely used in household, hotel.





Features:



* Infrared photoelectric sensor

* MCU processing

* Auto-reset after smoke clears

* Sound & flash alarm

* LED indicator

* Test & Hush button

* Low battery indication

* Dustproof, mothproof and anti-white light design





Specifications:



Model:

LYD-614ACR

Color:

White

Operating voltage:

AC220V or 110V + 9V backup battery

Static current:

<10uA

Alarm current:

<35mA

Alarm indication:

LED indicator flashes Red

Alarm sound:

≥85dB/3m

Operating temperature:

-10°C ~ +50°C

Humidity:

≤95%RH

Wireless interconnection frequency:

433MHz

Wireless transmitting distance

200m (open area)

Detecting area:

80m² at 6-12m installation height

60m² at installation height <6m

Unit Size:

Φ128*38mm





Main  Picture











Factory View:





Delivery Terms:



1)     Payment:  Western Union, T/T, L/C, Money Gram

2)     Shipping: DHL, UPS,TNT, EMS, and other courier available as required.

3)     Delivery time: 7-15 days after your full payment.



Our Service:







Competitive Advantage:



 * Professional experience and ability to accept and fulfill ODM/OEM orders.

* Answer your enquiries, questions and emails in 24 hours.

* Direct control on material, testing, quality, lead time ect.

* Flexible Payment terms ranged at different quantity

* One year warranty life for all detectors sold out from Lydian
