80W LED Street Lamp Fixture
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 7 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 1000 |
| Certificate: | CE,RoHS,TUV,ETL |
80W LED Street Lamp Fixture - Bridgelux 45Mil - 8000Lm - 85~265VAC - 250W HPS replacement
1. Light Source:1PC 80W COB Bridgelux
2. Luminous Flux:10800~12000Lm
3. Rated Wattage:120W
4. PF > 0.95 PE > 0.90
5. Base Options: wires
6. Input Voltage: 85~265VAC,50/60Hz
7. Color Temperature:3000~3500K/4000~4500K/6000~6500K
8. CRI > 70
9. Beam Angle:120 °

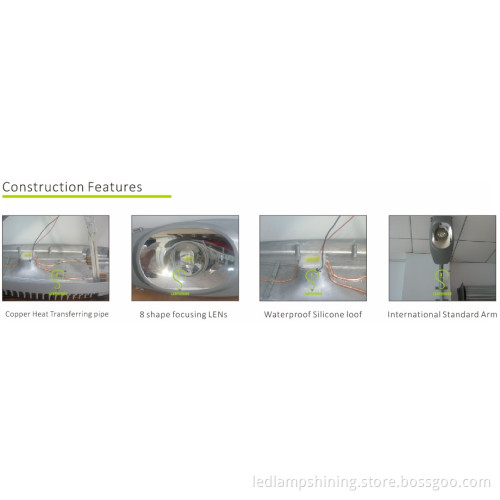

10. Module aluminum heat sink + Copper
11. Lifetime: 50,000+ hours

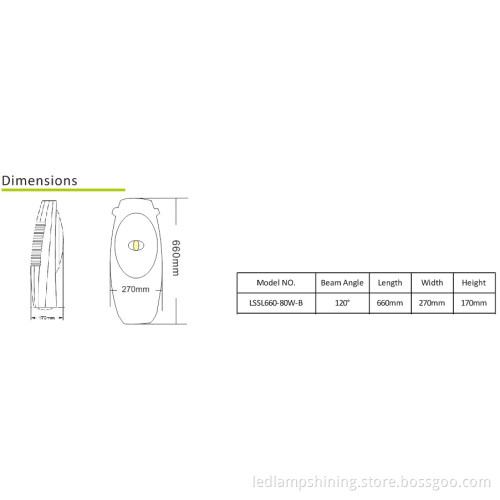

12. Size: L660 x W270 x H170 mm
13. IP Rating:IP65(Dust and water proof)
14. Body Temperature:<70celsius degree @Ta=25 celsius degree
15. Isolated waterproof power supply
16. CE,ROHS approved

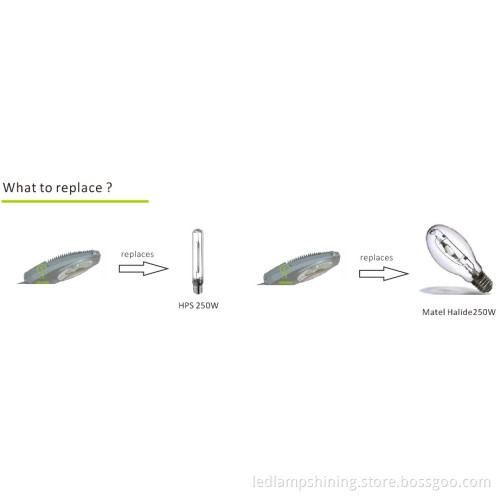

17. Replacement:250W Matel Halide/HPS
What should be awared of ?
1. Read the user`s manual in details, make sure the environment conditions fits the requests
2. Cut the power off before installation
3. Do not touch the exposed wires when it`s running on.Make sure wires are protected by insulating tape
4. Do not install this 80W Retrofit LED street lamp fixture in ambient where has high temperature over like 55celsius degree or over corrosive gas
5. Indoor & outdoor use
6. Don't throw away casually
Where to use ?

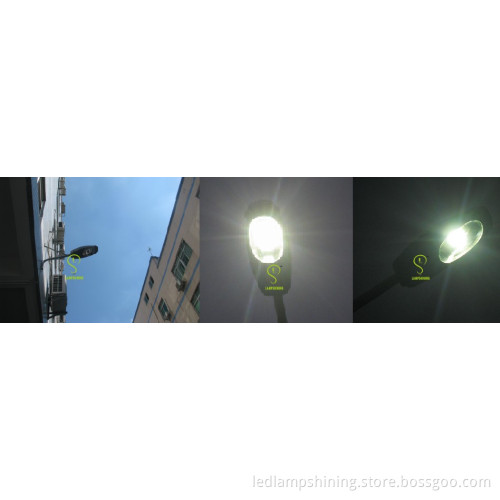

1. This 80W Retrofit LED street lamp fixture is the best choice for park, parking lot,garden, building,highway,pathway lighting etc
Please contact Lamp Shining Sales Office for more LED Street Lamp Fxitures.
