embedded box pc with Intel N280

LBOX-270:

1.Extreme Rugged and fanless design.

2.Intel Atom N280 at low power consumption with high performance,

3.Support full-automatic RS-485& WIFI, it's a multi-function industrial embedded computer.

Features:

Small size,low power consumption and economical solution

Compact size with high performance

High speed gigabit Lan controller

12v DC power support

Intel Atom n280+ ICH7M+945gse

Support DDR2 up to 2 GB

Support 1xVGA,4xUSB and Audio

Support 4xCOM and Digital I/Os

Support 1x2.5 inch SATA HDD or 1xInternal Compact Flash Type II slot

System:

CPU:                       Intel Atom N280  1.66 GHz

Memory:                  DDRII 1G  up to 2G

Chipset:                  Intel Atom N280+ ICH7M+945gse

Graphics:                Integrated Intel GMA3150

ATA:                        1xSerial ATA port with 300MB/s HDD transfer rate

LAN Chipset:          1xRealtek 8111C Gigabit Ethernet controllers

Watchdog timesr: 1-255 levels reset

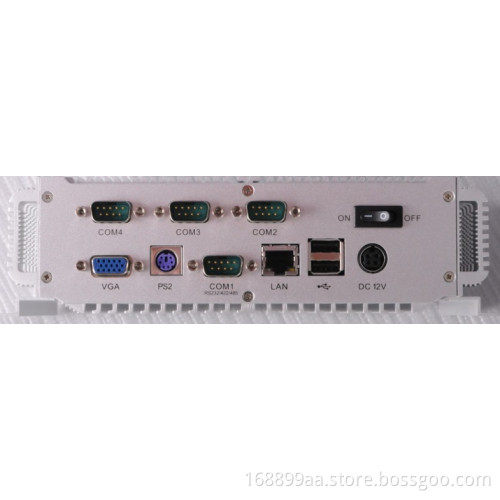

I/O:

Serial Port: 3xRS-232 ports+1 xRS-232/422/485 selectable ports with DB-9 pin connector.

USB Port: The Front:2xUSB 2.0 ports; The Rear:2xUSB 2.0 ports

LAN: 1xRJ45 ports for Gigabit Ethernet

Video Port: 1xVGA female connector for Digital Video Output.

Audio: Mic-in/Line-out

Expansion Bus: 1xMini-card interconnected with optional WIFI module.

Storage Type: 1x2.5 inch drive bay for HDD/SSD; 1xCF Socket

Mechanical Construction:

Material: Aluminum alloy

Dimension(LxWxH):215x115x60 mm

Weight(net): 1.9 kg

Weight(gross): 2.2 kg

Qualification: Certification of CE,FCC,ROHS compliance

Power requirement: Power Input: DC 12V

Color:White
