famless industrial motherboard with three years warranty

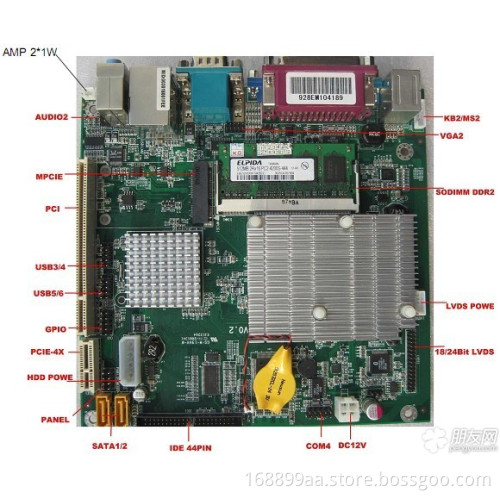

The  industrial motherboard (PCM5-928EM) in Mini-ITX form use 24 bits LVDS + VGA - 945 gse - c2 N280 processor + Intel 945 gse + ICH7M Navy Pier of three chip solution .Intel Atom N280 is one of the power only 2.5 W 45 nm process processor with basic frequency 1.6 GHz, 533 MHZ FSB. Intel 945 gse + ICH7M chipset provide higher performance than the other Intel low power consumption scheme.

The following are the main components of it:

System

CPU:Intel Atom Processor N280

Chipest: Intel(R) 945GSE/ICH7-M

Memory: DDR2 SO-DIMM Socket,total up to 2 GB

Lan: 1XRJ45,gigabit Ethemet (Realtek RTL8111C)

Bios: AMI PnP 8Mb SPI ROM

Audio: HD Audio Codec,supports line-in.line-out&Microphone Realtek ALC655-AC 97 Speak-out with AMP 2x2W

Display: Integrated on Intel 945GSE Chipset 24-bit Dual-channel LVDS from Chrontel ch7308.

Peripheral Support:

1xIDE(UlraDMA  100/66/33)

2xSATA 3Gb/s

1xLPT(25 pin)

4xRS232 with power Selection(com 1-RS485/422/422)

6xUSB 2.0

1xCF

1xPS/2 Keyboard connectror

1xPS/2 Mouse connectror

Power connector

ATX-4P or DC Jack for 12v Power Input only

Expansion 1xPCI slot  1xMini PCle 1xPCIE riserfor 1xPCle

Watchdog Timer: 1-255 step,can be set with software on Super I/O

Hardware Monitor: Operating voltage, CPU temperature and fan speed

Dimensions:170X175(mm)
