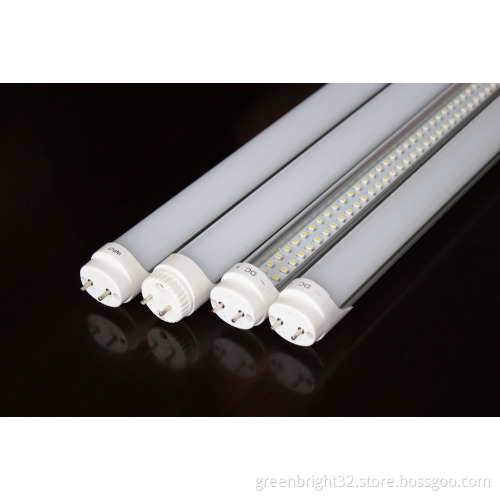

LED TUBE,LED LIGHT,LEDT8 TUBE,LEDT5 TUBE,T8 TUBE
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 3 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | shenzhen |
|---|---|
| Certificate: | CE ROHS PSE ROHS TUV FCC |
Product Description
Product Description
Basic Spec.
Model: GB-T8-12W-3A
Size: 900mm
LEDType: SMD 3528
LED Qty: 168pcs
PC cover: Frosted/Clear/Stripe
Electrical Characteristics All data is under 25, unless otherwise specified.
| Symbol | Parameter | Unit | Min. | Typ. | Max. |
| PS | Power Consumption | W | 7.9 | 8.2 | 8.5 |
| Vin | Input Voltage | V | 85 | 265 | |
| Vout | Output Voltage | V | 35 | 37.5 | 40 |
| F | Input Frequency | Hz | 50 | 60 | |
| % | Power Factor | 0.90 | 0.95 | 0.99 | |
| % | Power Efficiency | 84% | 88% | 92% | |
| Top | Operating Temperature Range | -20 | +50 |
Photometry Characteristics All data is under 25, unless otherwise specified.
| Symbol | Parameter | Unit | Min. | Typ. | Max |
| Br | Luminous Flux | lm | 595 | 620 | 645 |
| lv | Illuminance at 1m | lux | 130 | 145 | 157 |
| lv | Illuminance at 1.5m | lux | 73 | 82 | 88 |
| lv | Illuminance at 2m | lux | 40 | 43 | 52 |
| lv | Illuminance at 3m | lux | 18 | 20 | 27 |
| VA | Viewing Angle | degree | 120 | ||
| CCT | Color Temperature | K | 3,000-3,500 | 4,000-4,500 | 6,000-7,000 |
| CRI | Colour Rendering Index | 70 | 72 | 75 |
