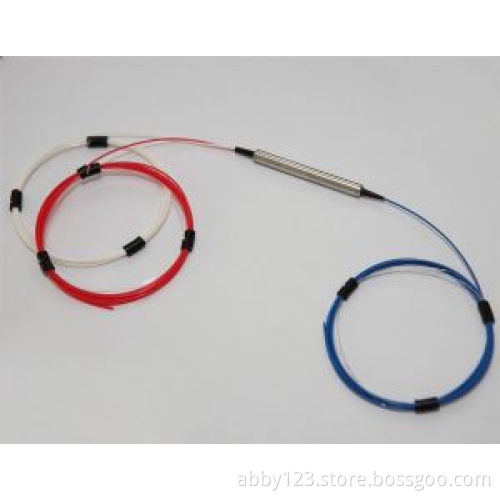

Polarization Maintaining Optical Circulator
Flying Optronics` polarization maintaining optical circulator utilizes proprietary designs and metal bonding micro optics packaging. It provides low insertion loss, broad band high isolation, high extinction ratio, excellent temperature stability and optical path epoxy free. It can be used for wavelength add/drop, dispersion compensation and EDFA applications.
All Flyin Optronics` products are Telcordia qualification tested.
Features
l Low Insertion Loss
l Wide Band,High Isolation
l High Extinction Ratio
l Compact In-Line Package
l High Stability and Reliability
l Epoxy Free Optical Path
Applications
l Fiber optic Amplifiers
l Metro Area Network
l Wavelength Add/Drop
l Dispersion Compensation
l Bi-Diection Communication
Performance Specifications
|
Parameter |
P Grade |
|
|
Configuration |
Port 1 to Port 2 to Port 3 |
|
|
Operating Wavelength (nm) |
131030 or 155030 |
|
|
Insertion Loss (dB) |
Typical |
0.8 |
|
Maximum |
1.0 |
|
|
Typical Isolation(dB) |
50 |
|
|
Minimum Isolation(dB) |
40 |
|
|
Extinction Ratio(dB) |
18 |
|
|
Cross Talk (dB) |
50 |
|
|
Return Loss(dB) |
50 |
|
|
Power Handing (mW) |
300 |
|
|
Polarization axis |
Both Slow and Fast axis |
|
|
Operating Temperature () |
-5~+75 |
|
|
Storage Temperature () |
-40~+85 |
|
|
Fiber Type |
PM Panda Fiber |
|
|
Package Dimensions(mm) |
5.5 x L50(L63 for 900um loose tube) |
|
The PM fiber and the connector key are aligned to the slow axis.
Device with connectors,insertion loss will be 0.3dB higher,return loss will be 5dB lower, extinction loss will be 2dB lower.
Ordering Information
|
PMOC |
X |
XX |
X |
X |
X |
XX |
|
|
Port |
Wavelength |
Grade |
Pigtail Type |
Fiber Length |
In/out Connector |
|
3=3 Port |
13=1310nm 15=1550nm |
P=P Grade |
1=250um Bare Fiber 2=400um Bare Fiber 3=900um Loose Tube |
1=0.75m 2=1m |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC X=Special |
