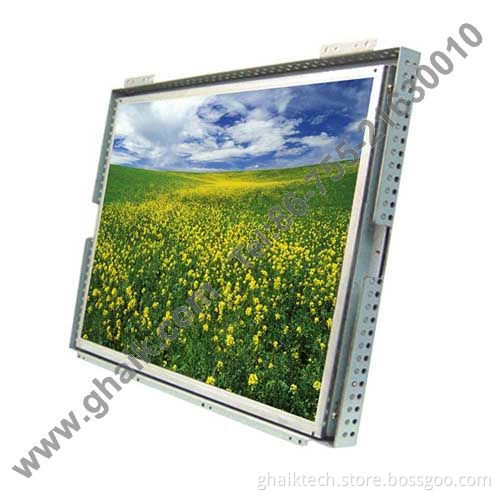

15 Inch Open Frame Touch Lcd Monitor

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 20 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Certificate:	EMI/EMC CE FCC Rohs

Product Description

=Product features=
  15 Inch Open Frame Touch Lcd Monitor
  1024 x768 Resolution
  250 / 350 / 550 cd/m2(Optional)
  VGA and DVI Signal Input
  12V 4A DC Input
  Touch (Optional)
  Meet FCC, CE, CCC, RoHS Certification
  Operating Temp:-20~80

Product Specifications

LCD
Panel Type	AUO LCD Panel (Optional)
Resolution	1024*768
Display Area(mm)	304.128(H)*228.096(V)
Brightness	250nits
Contrast Ratio	700:1
Colors	16.2M/262k colors
View Angle	80/80/70/60
Backlight Lifetime	50000
ODS Control	Auto Menu Select(+,-)Exit On/Off

Touch Screen
Type	No(Optional)
Resolution(pixel)	No
Touch Transmittance	No

Interface
Signal Input	VGA+DVI(15 Pin D-sub/DVI-D Connector) AV Input/Video Input/Video Input/Audio Input(Optional)
Touch Connectors	USB / RS232(Optional)

Power
Power Input	DC12V/4A (50~61HZ)-DC Jack (2.0mm)
Power Consumption	is less than or equal to 36W

Mechanical
Material	Steel chassis
Mounting	Support VESA Wall Mount and Embedded Mount
Dimensions	357.3(H)292.0(V)42.8(D)

Environment
Operating Temp	-20~80
Storage Temp	-20~80
Relative Humidity	10~90% @40C^o Non-condensing without touch screen
Vibration	1G peak,5~500Hz(Random)
Shock	15G peak acceleration (11msec.duration)
Rating	Meet EMI/EMC CE FCC Rohs

Ordering Information
GHK-15OP-NA	15 Inch Open Frame Lcd Monitor
GHK-15OP-TA	15 Inch Open Frame Touch Monitor
