Dot Matrix Printer(MP500)
- Payment Type:
- Paypal
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 5 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000 Sets |
| Supply Ability: | 1000 |
| Payment Type: | Paypal |
| Incoterm: | FOB |
| Certificate: | CE CCC FCC RoHS |
Quick Brief:
Portable printer MP500 is a mini size styles printer,even can be put into your pocket,very convenient to carry.The printing paper size is 58mm.With bluetooth communication,can be connected and work together with our varied PDA models.
Main Details:
|
Technical Parameters |
|||
|
Printing Method |
Dot Matrix |
||
|
Resolution |
5 dots/mm(127dpi),240 dots/line |
||
|
Effective Printing Width |
48mm |
||
|
Printing |
Speed 1.2 lps |
||
|
Character Set |
ASCII,GB18030(Chinese) |
||
|
Print Font |
ANK: 7 x5/12 x6/16 x8, Chinese: 12 x 12/16 x 16 |
||
|
Self-defined Character |
Yes |
||
|
Graphic |
Support bitmap downloading |
||
|
SDK |
Symbian/Windows Mobile/Windows CE/Blackberry/Android |
||
|
Driver |
Windows XP/Windows Vista/Windows 7 |
||
|
Paper Reference |
Type |
Plain paper |
|
|
Width |
57.5± 0.5mm |
||
|
Thickness |
0.06 to 0.08mm |
||
|
Roll Diameter |
40mm(Max.) |
||
|
Supply Method |
Semi-auto Loading |
||
|
Cutting Method |
Manual |
||
|
Paper End Sensor |
Yes |
||
|
Black Mark Location |
Yes |
||
|
Auto Sleeping |
Yes |
||
|
Interface |
Bluetooth,RS-232,IrDA,optional |
||
|
Battery |
DC7.4V,1.5A rechargeable Li-ion battery |
||
|
Charger |
DC12V/2A |
||
|
TPH |
1.5 Million lines |
||
|
Working Atmosph. |
Operating Temp. |
-10°C~50°C |
|
|
Storage Temp. |
-20°C~60°C |
||
|
Operating R.H. |
Relative Humidity 10%-80%(non condense) |
||
|
Storage R.H |
Relative Humidity 10%-90%(non condense) |
||
|
Impact Proof |
Withstands up to 1.5M drops to concrete, room temperature and default configuration; multiple 1.2M drops to concrete, all axis, and across operating temperature range. |
||
|
Product Size |
112mm(L)*98mm(W)*46mm(H) |
||
|
Weight |
350g |
||

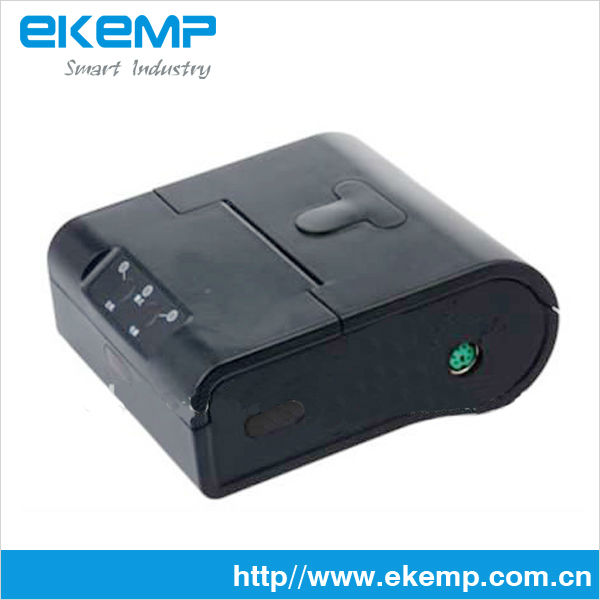

Picture of MP500:
After-sales serives:
- 1- -One Year Warranty.
- 2--Providing the technical supports during your using process.
- 3--If the device have some problems in quality, you could send us for servicing, and you need to pay the shipping charge for your sending, and we will pay the fee of sending to you after it is Ok.
- 4--If you want to learn more about our products, please visit our website ekemp.com.cn.
- 5--If you have any problem, please contact me ASAP....
