IAD20 Gateway

IAD20 VoIP Getaway offers maximum capacity of 96 FXS lines and/or FXO lines1, suitable for carrier and medium enterprise VoIP deployment.

IAD20 bridges legacy telecom terminal equipments, such as telephone, FAX machine, enterprise PBX, etc, into IP based voice network that constructed by the carrier or enterprise itself. When placed at network side connecting with PSTN switch, IAD20 can be use to bring remote VoIP user into PSTN network. For IP based Call Center solution, IAD20 is the idea remote access gateway for the operators. IAD20 adopts modular design, can flexible configure FXS/FXO line capacity and DSP resource to gain best performance to cost ratio.

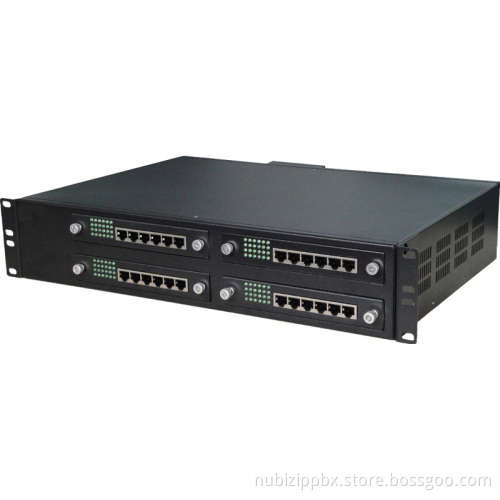

IAD20 designed with 1U (up to 48 analog lines) or 2U (up to 96 analog lines) high and 19'' wide compact chassis. Full capacity system consumes maximum 125W power, and can be either 110-240V AC or -48V DC2 input.

Intelligent and Rich in Features
IAD20 adopts embedded linux operating system, supports SIP and MGCP. Work as IP-Centrex access terminal, IAD20 offers rich features, such as call transfer, call pick-up, conference, caller ID, fashion ring, fork ring, FAX3, Radius call record, 500 routing rule, number translation, PSTN line fail-over on power failure or network interruption, etc. This makes IAD20 suitable for variety application requirement.

Easy to Operate and Maintain
IAD20 provides Web-based management GUI, allowing user to configure parameters, upgrade firmware, import and export configuration data, monitor status, and etc. IAD20 also supports remote management standards, such as Auto-provisioning, Telnet, TFTP, SNMPv2, TR069, TR104 and TR106.
