Optical Isolation rs-232 to rs-485 Converter

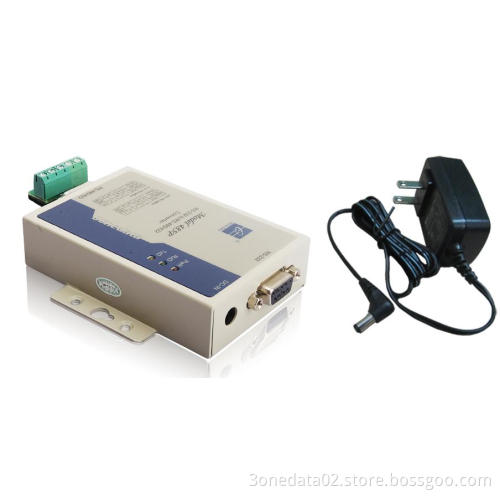

Features 1. 9VDC power input, 2500V optical isolation 2. Plug-and-Play(hot-pluggable, data format auto-sensing & self-adjusting) 3. Data direction auto-turnaround, no flow control is necessary 4. 1500W surge protection, 15KV ESD protection 5. 1800m transfer distance (115200bps) 6. RS-485/RS-422 connector RJ45, DB9M or 5 bit terminal block Introduction Model485P is a high performance, more function RS-232/485/422 interface converter. The product configure out connect power, optic-electrical isolation more than 2.5KV. Have small volume, far transmission distance, high rate, steadily performance and so on. It is abroad used in industry control system, It is an interface convert product that have good between performance to price. Adopt itself adapt interface technique, no use for setup switch. Specification Standards: EIA RS-232C, RS-485, RS422 standard RS-232 signal: TX, RX, GND RS-422 signal: T+, T-, R+, R-, GND RS-485 signal: D+, D-, GND Working mode: Asynchronism, point to point or multi point, 2 wire half-duplex,4 wire full duplex Baud rate: 300~115200bps, auto test serial signal rate detect signal speed automatically, zero delay time Flow control: Data direction auto-turnaround, no flow control is required Transfer distance: RS-485/422 side:1.8Km,115200bps RS-232 side: no less than 5m Max number of drops: 128 nodes Optical isolation: 2500V Port protect: 1500W surge protection,15KV ESD protection Power Power input: 9VDC power input Consumption: Static less than 120mA, dynamic less than 350mA Environment Operating temperature: -10^oC to 60^oC Storage temperature: -40^oC to 85^oC Humidity: 5% to 95%(no condensation) Appearance Dimensions: 93.0mm x 62.4mm x 22.0mm Material: Iron(shell) Color: White Weight: 200g Warranty: 5 years Approvals: FCC, CE, RoHS approvals
