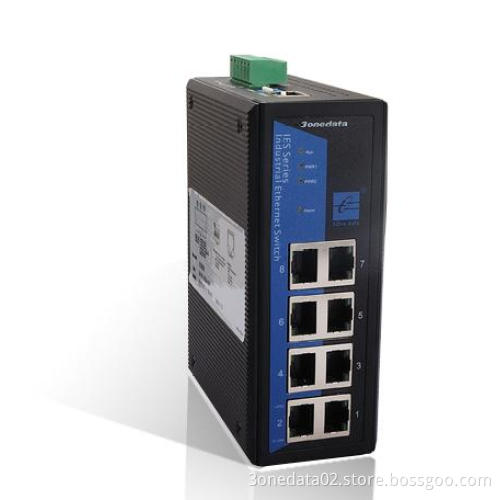

8-port WEB Managed Redundant Industrial Ethernet Switch

1. Store and forward.8k address. Support MAC address filtrate struction 2. SW-Ring(recovery time < 20 ms at full load) 3. Port-based VLAN, IEEE 802.1Q VLAN to ease network planning 4. Port Trunking for optimum bandwidth utilization 5. Lock port function for blocking unauthorized access based on MAC address 6. Port mirroring for online debugging 7. Bandwidth management prevents unpredictable network status 8. Dual power backup, Relay output warning for power failure and port break alarm 9. Port link, ring fault/abnormity alarm indication 10. IP 30 protection, rugged high-strength metal case 11. Redundant 24VDC power input(12V-36VDC)Operating 12. DIN-Rail or panel mounting ability Introduction IES608 series are a type of plug-and-play industrial managed redundant Ethernet switch, which supports 8 10/100Base-T(x). The 7 and 8 ports are used to establish SW-Ring for the purpose accomplishing redundancy for Ethernet ring network (self-recovery time <20ms) to enhance the reliability of the network. Furthermore, IES608 series can also support numerous intelligent network management functions, including QoS, VLAN, Port Trunking, velocity configuration and alarm enabling functions. To satisfy applications in different industrial environments, IES608 series can also provide wide temperature type in accommodation with limit temperature (-40 ~ 75^oC). Interface RJ45 Ports: 10/100BaseT(X) auto connection, Full /Half duplex or force work mode, and support MDI/MDI-X connection DOWNLOAD PROGRAM Port: Based serial network management (RS-232), RJ45 Alarm output interface: One relay alarm output. Support power, port link and ring network alarm . Indicator: Port link, ring fault/abnormity alarm indication 10M/100M Rate, run indication Technology Standards: IEEE802.3, IEEE802.3x, IEEE802.3u, IEEE802.1Q, IEEE802.1D, IEEE802.1W Transmit Rate: 148810pps Max Rate of Filtrate: 148810pps Processing Type: Store and Forward System exchange bandwidth: 4.8G Support 8K MAC address Port-Based VLAN Relay Max voltage: DC30V Max current input: 1A Power Input Voltage: 24VDC (12VDC~436DC) Overload Current Protection Support dual power backup Support dual power alarm input Mechanical Dimensions: 136mm x 52mm x 105mm (H x W x D) Casing: IP30 protection, metal case Weight: 800g Environmental Operating Temperature: -40 to 75^oC Storage Temperature: -45^oC to 85^oC Ambient Relative Humidity: 10 to 95% (non-condensing) Approvals EMI:FCC Part 15, CISPR (EN55022) class A EMS: EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5 (Surge), Level 4 EN61000-4-6 (CS), Level 4 EN61000-4-8,100A/m EN61000-4-12 Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 Warranty: 5 years Approvals: FCC, CE, RoHS approvals
