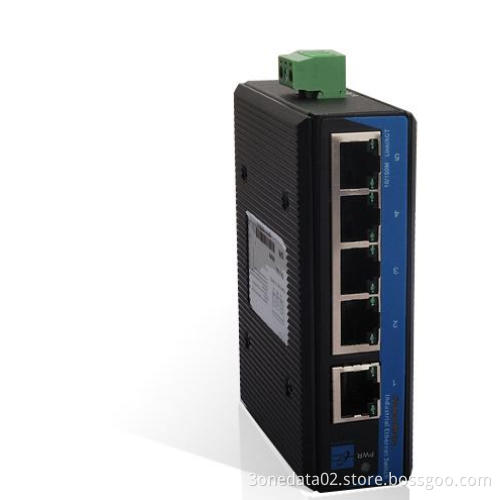

5-port Entry-level Industrial Ethernet Switch

Features 1. IEEE802.3/ 802.3u/ 802.3x 2. Support auto negotiation speed, F/H duplex mode, and auto send data control 3. Plug-and-play, auto MDI/MDI-X connection 4. Store and Forward 100M 5. Switching process type 6. Broadcast storm protection 7. Network work state LED indicator 8. 12-36VDC power input Operating temperature ranges from -40 to 75^oC 9. Industry standard design, dustproof and close design IP30, rugged high-strength metal case Introduction The IES205 series of industrial Ethernet switches are entry-level industrial 5-port Ethernet switches that provide an economical solution for your industrial Ethernet connection, support IEEE802.3/802.3u/802.3x. Dustproof and full close structure and the IP30 case with LED indicators make the plug-and-play IES205 switches easy to use and reliable. These switches have been designed for harsh industrial environments. IES205 Supports 5 ports 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection. Specification Interface RJ45 Ports: 10/100BaseT(X) auto connection, Full /Half duplex or force work mode, and support MDI/MDI-X connection Technology Standard:IEEE802.3, IEEE802.3x, IEEE802.3u Forwarding and Filtrate Rate: 148810pps Transmit type: Store and Forward switching process type Support 1K MAC Address Power Input Voltage: 12VDC~36VDC, Overload Current Protection Connection: 3 bit terminal block Mechanical Dimensions (L x W x H): 103mm x 78mm x 32mm Packaging: IP 30 Protection, Metal case Environmental Operating Temperature: -40 to 75^oC Storage Temperature: -45 to 85 ^oC Ambient Relative Humidity: 10% to 95% (non-condensing) Approvals EMI:FCC Part 15, CISPR (EN55022) class A EMS: EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 Warranty: 5 years Approvals: FCC,CE, RoHS approvals
