ICR16340 Li-ion Rechargeable batteries for interphone
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | Shenzhen |
---|
Product Description
Product Description

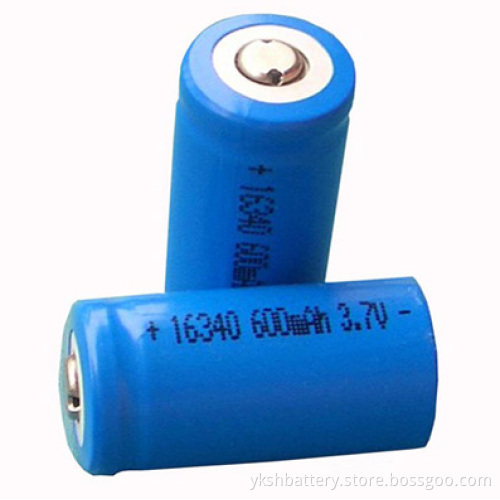

ICR16340-600mAh
Specifications:
* Nominal capacity: 600mAh
* Nominal voltage: 3.70V
* Inner resistance: is less than or equal to 80m
* Charging voltage limitation: 4.20 plus or minus 0.02V
* Charging end-current: 0.02 C5A
* Discharging end-volt: 3.0V
* Standard charging current: 0.5C5A
* Standard discharging current: 0.5C5A
* Quick charging current: 1C5A
* Quick discharging current: 1C5A
* Discharging current: 2C5A (maximum)
* Working temperature range:
- Charge: 0 to 45
- Discharge: -20 to 60
* Working humidity range: less than 85% RH
* Storing temperature and humidity range:
- Charge: 0 to 30
- Discharge: less than 45
- Humidity: less than 85% RH
* Outside dimensions (D x H): 16.2 x 34.0mm
* Weight: about 16g
We also can supply you ICR10440-320mAh, ICR14500-600mAh, ICR16340-600mAh, ICR17500-1000mAh, ICR17650-1400mAh, ICR17670-1400mAh, ICR18350-700mAh, ICR18500-1400mAh, ICR18650-2200mAh etc.
