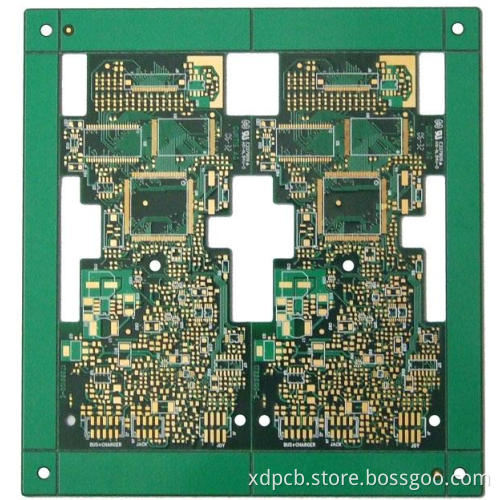

4-Layer PCB with OSP Surface Finishing
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 18 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Supply Ability: | 10000 |
1)Layer: from 1 to 20
2)Board finished thickness:0.5-6.0mm
3)Material: FR-4,CEM-1, CEM-3, High TG, FR4 Halogen Free, etc
4)Surface finish/treatment:HASL/HASL lead free, HAL, Chemical Gold/tin, Immersion Silver/Gold/Tin, OSP,
Gold plating, Hard &Soft gold, Plating tin.
5)Product range:Flex-PCB, Rigid-PCB, Flex-rigid PCB,HDI PCB ,PCB of single,
Double and Multi-layers, High frequency PCB ,etc
6)Max. finished board size:Single & Double Layer:450mm*650mm
Multilayer:450*500mm
7)Min. drilled hole size:3mil(0.075mm)
8)Min. line width:3mil(0.075mm)
9)Min. line spacing:3mil(0.075mm)
10)Solder mask color : Green/yellow/black/white/red/blue
11)Copper thickness in hole:>20.0um (1mil)
12)Shape tolerance:plus or minus 0.13
13)Hole tolerance:PTH: plus or minus 0.076; NPTH: plus or minus 0.05
14)Certificate:UL,ISO9001,ISO14001,SGS,RoHS compliance
15)Special req.Buried and blind vias +controlled impedence +BGA
16)Profiling :Punching ,Routing ,V-CUT, Beveling
17)Packing Inner: Vacuum packing/Plastic bag
Outer: Standard carton packing
