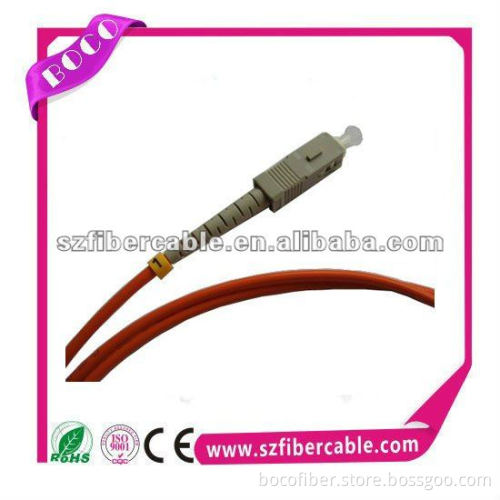

3.0mm individual packed Multimode Simplex fiber optic sc pig
  • 3.0mm individual packed Multimode Simplex fiber optic sc pig
3.0mm individual packed Multimode Simplex fiber optic sc pig

3.0mm individual packed Multimode Simplex fiber optic sc pig

Min. Order:
100
Min. Order:
100
Delivery Time:
7 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China(Mainland)
Supply Ability: 20000
Certificate: GR-326-Core, IEC Standard
Product Description
Product Description

IEC Standard om2 sc multimode fiber optic patch cord



Description:

Model Number PC-MM-SC-B                  Colour Yellow                          Cable size 3.0mm

connector type  SC                            connector polishing    PC         cable structure    simplex

jacket material   PVC,LSZH                 Cable length  3m                    Cable brand         Corning

quality standard       GR-326-Core, IEC Standard



Overview:

SC fiber optic patch cord is with SC fiber optic connector, which was invented by the Japanese company Nippon Telegraph and Telephone. SC patch cord is one of the most widely used types of fiber optic patch cords. Fiber optics SC patchcord can be simplex or duplex (zipcord), single mode or multimode. For single mode SC fiber optic patch cord, there are PC polished one and APC polished one, for multi mode SC fiber optic patch cord, they are all PC polished one. SC fiber optic patch cord features low cost, simplicity as well as good durability; the ceramic ferrules of SC fiber optic patch cord make them accurate alignment. These fiber optic patch cord are with a locking tab on the cable termination; they are push and pull type fiber optic connectors. Generally SC fiber optic patch cords life cycle is with about one thousand times mating cycle.


Environmental Reliability Test for patch cord



The performance of the patch cord has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others



Key Features for patch cord or jumpers

  • Low insertion loss
  • Low return loss
  • Various connector types available
  • Easy instalation
  • Environmentally stable
  • PC,UPC,APC,etc.

Detailed Features:



1.Warranty :Limited lifetime warranty
2. Technology  :Fibre optic
3. Type :Network cable
4. Length :3m
5. Connector :1 x SC multimode - male

6. Other connector : 1 x sc multimode-male
7. Core / Cladding Diameter : 50/ 125 micron
8. Type of Fibre Optics : multimode



Mode

Single mode

Multimode

Polish

UPC

APC

PC

Insertion Loss

0.2dB

0.3dB

0.2dB

Return Loss

55dB

65dB

35dB

Interchangeability

0.2dB

Salt Spray

0.1dB

Repeatability

0.1dB (1000 times)

Vibration

0.2dB (550Hz  1.5mm)

Temperature

0.2dB (-40+85 sustain 100 hours)

Humidity

0.2dB  (+25+65 93 R.H.100 hours)

Apex Offset

0m ~ 50m

Radius of Curvature

7mm ~ 25mm

Standards-Compliant

ROHS,IEC and GR-326



Fiber type

Singlemode:1,9/125-G652D
           2,9/125-G655
           3,9/125-G657

Multimode:4,50/125-OM2
          5,62.5/125-OM1
          6,50/125-OM3

Fiber

Corning,China Fiber,other

Connector1

SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others

Polishing

PC,UPC,APC,MTRJ Male connector,MTRJ female connector

Connector2

SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others

Polishing

PC,UPC,APC,MTRJ Male connector,MTRJ female connector

Cord type

Simplex ,Duplex

Cable diameter

0.9mm ,2.0mm,1.8mm 3.0mm

Cable jacket

PVC,LSZH,OFNR,OFNP

length(M)

0.5m,1m,3M,5m,10m,20m,200m



Structure of patch cables



A)Adaptors


1.Available in single and multimode versions

2. Range of adaptor types such as LC, ST, SC, MTRJ, FC and Hybrid



B) Fibre Optic Cables
1. Patchcords are manufactured using tight jacket cables with Aramid yarn PVC and LSZH jacket.

2. They can be supplied as Simplex, meaning one fibre, or Duplex, meaning two fibres and come in either 3mm zip cable or mini-zip which is 2.0mm.

3. Patchcords can be supplied in many colours with GREY for 62.5/125 (OM1), ORANGE for 50/125 (OM2 and OM3) and YELLOW for 9/125 (OS1), being the standard.



Applications for patch cables



        LAN (Local Area Network

  • FTTH (Fiber To The Home)
  • CATV&CCTV
  • High speed transmission systems
  • Fiber optic sensin
  • Test Equipment
  • Fiber optic telecommunication




Fiber  Processing steps :


Fiber Cable Types :

Singlemode Fiber Cable : 3.0mm ,2.0mm ,0.9mm,simplex,duplex,multi-cores




Connector Spare parts Assembly






Package:








Patch Cords satandard Application :

patch cords applications.jpg



Why Chose us :

1. Fast delivery
2. Competitive price

3.. Professional product and technical support
4.  Prompt answer for any question or inquiry
5.  Reliable quality, OEM service available

6. Free sample provided

7. Longtime warranty

8.  Value-added service: except good products, we can provide good services on logistic and other help you may need




Order Information
1. Fiber: SM, MM 50/125, MM 62.5/125, OM3, G.657 or other;
2.Cable Material: PVC or LSZH or Other;
3.Type: Simplex or duplex or flat or breakout or ribbon,
4.Cable diameter: 0.9mm or 2.0mm or 3.0mm or other;
5.Connector 2: SC/APC, LC/UPC, FC/PC or empty or other
6.Length: 1M, 2M, 3M or 5M or other;
