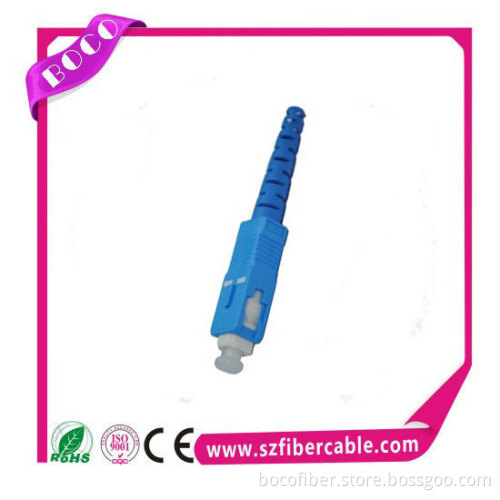

SC 2.0mm fiber optic connector

Get Latest Price

Min. Order:: 100

Min. Order:: 100

Delivery Time:: 5 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Certificate:	CE,RoHS standard,GR-326-Core,ICE Standard

Product Description

Specification :
1. FTTH project usable
2. Field installable
3. Field assembly time
4. Cost effective
5. User friendly
6. No electricity required
7. Ready in less than 2 minutes
8. Reliable and superior optical performance
9. Cable Tensile test complies with Telcordia GR-326-CORE

Technical Standard :

Insertion Loss: PC≤0.2dB, UPC≤0.2dB, APC≤0.3dB ; Typical0.1dB;
Return Loss: SM PC≥50dB, UPC≥50dB, APC≥65dB; MM PC≥45dB, UPC≥45dB
Interchangeability: ≤0.2dB
Salt Spray : ≤0.2dB
Repeatability : (1000 times) ≤0.1dB
Vibration: (550Hz 1.5mm) ≤0.1dB
High Temperature : ( +85 sustain 100 hours) ≤0.2dB
Low Temperature : (-40 sustain 100 hours) ≤0.2dB
Temperature Circularly: (-40+85 sustain 100 hours) ≤0.2dB
Humidity : (+25+65 93 R.H.100 hours) ≤0.2db
Apex Offset: 0m≤≤50m

Features

1. Low insertion loss
2. High return loss
3. High interface performance
4.Latched push-pull integrated.
5.Differential colour coded
6.UL standard accessories, comply with RoHS.

Application:
1. Patch panels
2. Distribution frames
3. Maintenance or emergency restoration of fiber networks
4. FTTH Outlets
5. Connection at the desk for LAN environments

Parameters	S. M
	PC	UPC	APC
Insertion Loss (Typical dB)	< 0.35dB
Return Loss(Typical dB)	> =45 dB		> =50 dB
Mating Durability (500 cycles)	< =0.2dB
Temperature Stability	< =0.3dB
Operating Temperature ° C	-40° C to +80° C
Storage Temperature ° C	-40° C to +85° C
Connection Method	Push-on

Order information :
Fiber cores; Singel, dual.
Cable diameter(mm): 0.9 2.0 3.0
Fiber type: PC upc apc
Connector type: SC, FC, LC, ST, MTRJ, DIN, D4
