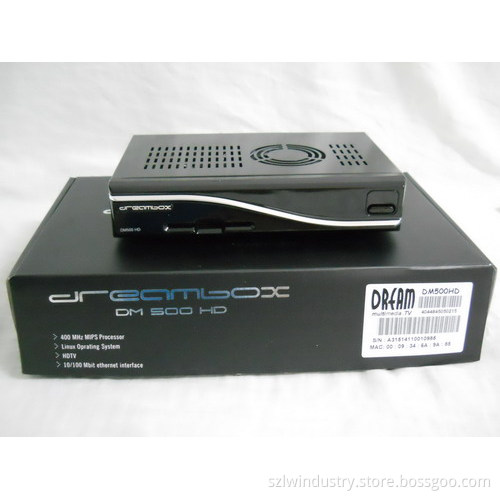

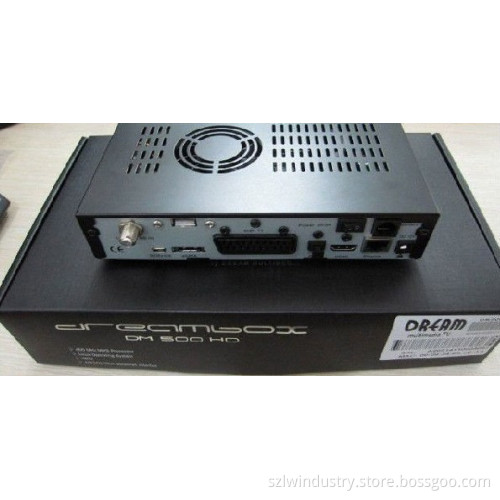

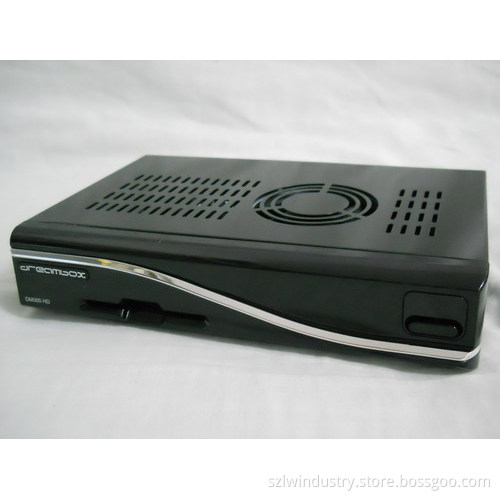

Dm 500HD With Original Packing and Also With OEM DVB 500HD Version

  Product Description

1. Dreambox 500HD dm 500HD, DVB 500HD
2. 400MHz processor
3. Enigma 2 system
4. Factory best price with highest quality

New DVB 500HD
Powerful receiver for digital TV and Radio programs.
Main features are a 400 MHz processor, the DVB 500 HD supports the Linux TV API

Have a look to HighDefinition TV on your

10/100MBit compatible Ethernet Interface
HDMI connector

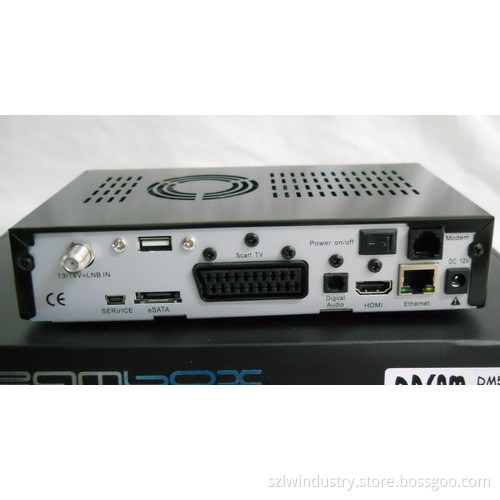

Technical Features

400 MHz MIPS Processor
Enigma 2, Linux Operating System
2 LED status
MPEG-2 / H. 264 Hardware decoding
Tuner: DVB-S2
1 x Smartcard-Reader (Dreamcrypt CA)
Mini USB for Service and software update
10/100Mbit Ethernet Interface
1 x Scart (RGB, FBAS, YUV or S-Video)
HDMI
Analog modem
S/PDIF Interface for digital bit stream out (AC-3)
64 MByte Flash, 256 MByte RAM
Unlimited channel lists for TV/Radio
Channel-change time < 1 second
Automatic service scan
Directly bouquet-lists
EPG (electronic program guide)
Multiple LNB-Switching control (supports DiSEqC)
OSD in many languages and skin-support
Videotext Decoder
External 12V power supply

DM 500 HD technical data

Output Level 0, 5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical, Toslink

Ausgang Video:
Ausgangspegel FBAS 1 Vss +/- 0.3 dB an 75 Ohm

Video parameter:
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard

TV-Scart:
Output: FBAS, YUV, RGB, S-Video

MiniUSB service connector
Function: Firmware update

Ethernet:
10/100 MBit compatible interface
Function: Firmware update

Analoge modem:
Analoge modem for Internet connection

LNB power and polarisation per tuner:
LNB Current 500mA max.; Short-circuit-protected
LNB Voltage vertical < 14V no load, > 11, 5V at 400mA
LNB Voltage horizontal < 20V no load, > 17, 3V at 400mA

Count of active satellite position:
DiSEqC 1.0/1.1/1.2 and USALS - Rotor Control DBS-Tuner, DVB-S2:
Frequency Range 950...2150 MHz
Demodulation DVB-S (QPSK); DVB-S2 (8PSK, QPSK)
Symbol rate DVB-S: 2...45 Mbaud/s, SCPC/ MCPC
DVB-S2: 10 -31 Mbaud/s (8PSK), 10 -30 Mbaud/s (QPSK)

Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible, H. 246
Video Formats 4: 3 / 16: 9
Letterbox for 4: 3 TV-Device

Audio decoder:
Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz

Output analog:
Output Level L/R 0, 5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB

Output digital:

Power consumption:
< 12W at 12V in operation
< 1W in standby

External PSU
Input:
110-240V AC / 50-60Hz / 0, 6A
Output:
12V = / 3, 0A

Physical specification:
Ambient Temperature +15° C...+35° C
Humidity < 80%
Size (W x D x H): 195 mm x 130 mm x 40 mm
