0.5t,1t,2t,3t,5t C32 tension Load Cell KBM14C

Kaw Electronics Co,. Limited is supplying KBM14C Column Type Load Cells and following  products:  High  precision  Load  cells, Weighing equipments, Digital personal scales,Kitchen ScalesBody Fat Scales and electrical weighing systems; RF products, onnectors,interconnect components, connector adaptors, mobile phone  amplifier,  GSM  repeater,  3G  repeater,  power divider,  two-way  radio  accessories,  transceiver  antenna,  base station  antenna, Omni directional  fiber  glass  antenna, RFID Guard  Touring  System,  RFID  hand terminal, GPS and Navigation  accessories.

Contact person: Brent Xu(sales Manager)

Kaw Electronics Co., Ltd

TEL: 86-755-86640950

Add: HaiDe Mansion, Nanxin Road, Nanshan District, Shenzhen, China. 518052

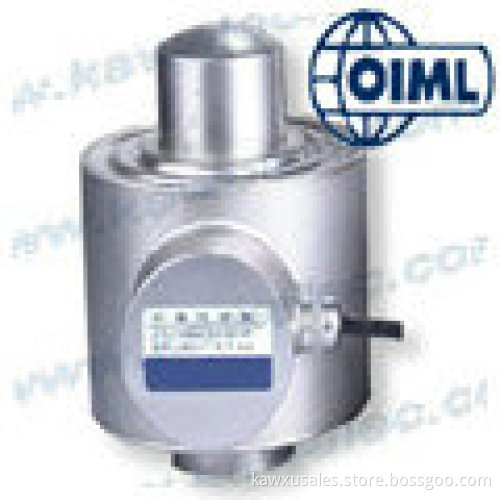

Features of KBM14C Column Type Load Cell :

 1,Stainless steel IP68 compression load cell
 2,Hermetically closed
 3,Suitable for vehicle and hopper scales and vehicle testing facilities
 4,Protection against lightning surges

Capacity  of KBM14C Column Type Load Cell Model:
0.5t C32  Column Type Load Cell KBM14C
1t C32  Column Type force measure KBM14C
2t C32  Column Type Force sensors KBM14C
3t C32  Column Type Load Cell KBM14C
5t C32  Column Type Force sensors KBM14C
10t C3   Column Type Load Cell KBM14C
10t  C4   Column Type force measure Cell KBM14C
20t C3  Column Type bearing load Cell KBM14C
20t C4  Column Type sensors and transducers KBM14C
25t C3  Column Type Load Cell KBM14C
25t C4  Column Type Load Cell KBM14C
30t C3   Column Type Force sensors KBM14C
30t C4  Column Type Load Cell KBM14C
40t C3  Column Type load pin KBM14C
40t C4  Column Type Load Cell KBM14C
50t C3  Column Type load pin KBM14C
50t C4  Column Type Load Cell KBM14C
0.5t,1t,2t,3t,5t C32  tension Load Cell KBM14C
10t,20t,30t,40t,50t C3 measurement for force Cell KBM14C
10t,20t,30t,40t,50t C4 Column Type Load Cell KBM14C
10t,20t,25t,40t C3 Column Type Load Cell KBM14C

Specification  of KBM14C Column Type Load Cell:
Accuracy class OIML R60 C3 C11
Output sensitivity ( = FS ) mV/V 2.0  0.002
Maximum capacity ( Emax ) t2 10, 25, 40 60, 100 2001
Maximum number of load cell intervals ( nLC ) 3000 1000
Ratio of minimum LC verification interval Y = Emax / vmin 9000 15000 10000
Combined Error %FS   0.023   0.050
Minimum dead load t 0
Safe overload of Emax 150 %
Ultimate overload of Emax 300 %
Zero balance of FS   1.0 %
Excitation, recommended voltage V 5 ~ 12
Excitation maximum V 18
Terminal resistance, input  450  5
Terminal resistance, output  480  5
Insulation impedance M  5000 ( at 50VDC )
Temperature range, compensated C -10 ~+40
Temperature range, operating C -35 ~ +65
Element material Stainless steel
Ingress Protection (according to EN 60529) IP68
ATEX classification (optional) II1G Ex ia II1C T4 II1D Ex iaD 20 T73C II3G nL IIC T4
