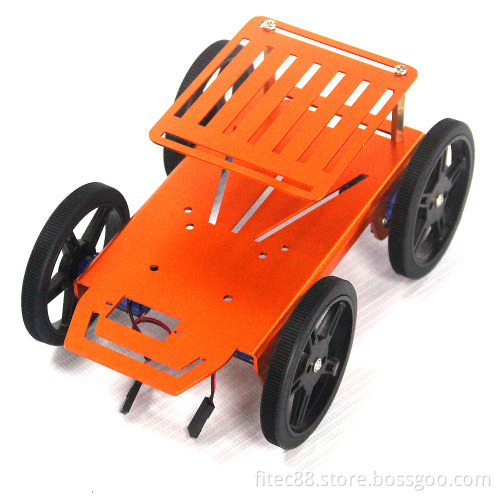

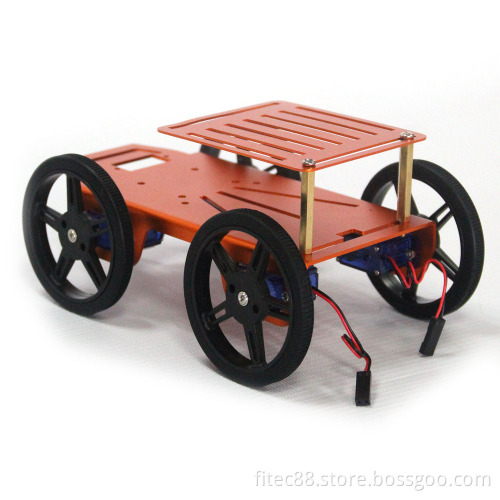

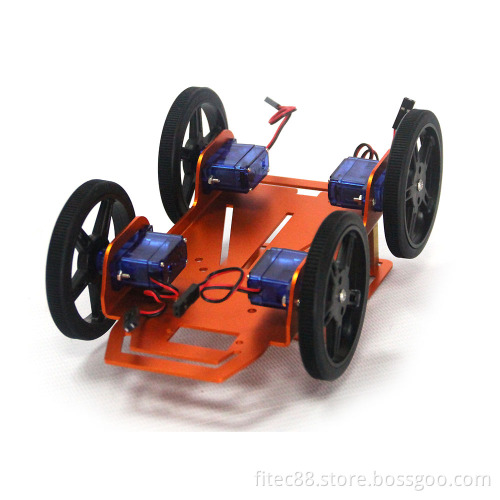

FEETECH 4WD Mini Robot Mobile Platform Kit FT-MC-003

FEETECH 4WD Mini Robot Mobile Platform Kit FT-MC-003

–No completely assembled and without any electronic control part

Youtube Video:https://youtu.be/pWyKyRgETpo

Description:

· Mini Robot Mobile Platform used 4 DC motor gear box to drive. The spec the same as FS90R - - High speed up to 100RPM, 1.3kg.cm at 800mA.

· Four plastic wheels are press-fit onto DC motor gear box output gear shaft, and easy to make a nice drive solution for small robots. The wheels have silicone tires and the diameter is 60mm (2.36″) .

· This Mini Robot Mobile Platform frame make with 5051 aluminum alloy and anodize color (The factory default is orange. Can do other color if need. ).

· Mini Robot Mobile Platform can compatible with Arduino controller.

· Easy to add all kinds of sensor and let it to work at your idea.

· This is a good start kit for student.

Specifications:

· Size(L*W*H): 170mm*100mm*60mm

· Weight: 147g

· Drive: 4WD

· Frame: 1.5mm aluminum alloy structure, light weight and high strength

· Color: orange(other color if need)

· Work voltage: 4.5~6V

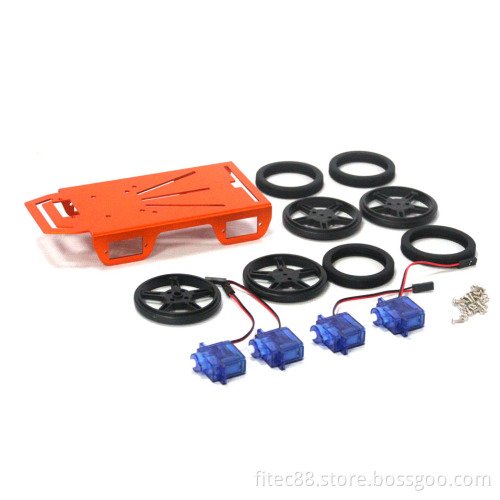

Package Included:

· DC motor gear box x 4

· FS90R-W x 4

· Frame x 2

· Screw 1 SET
